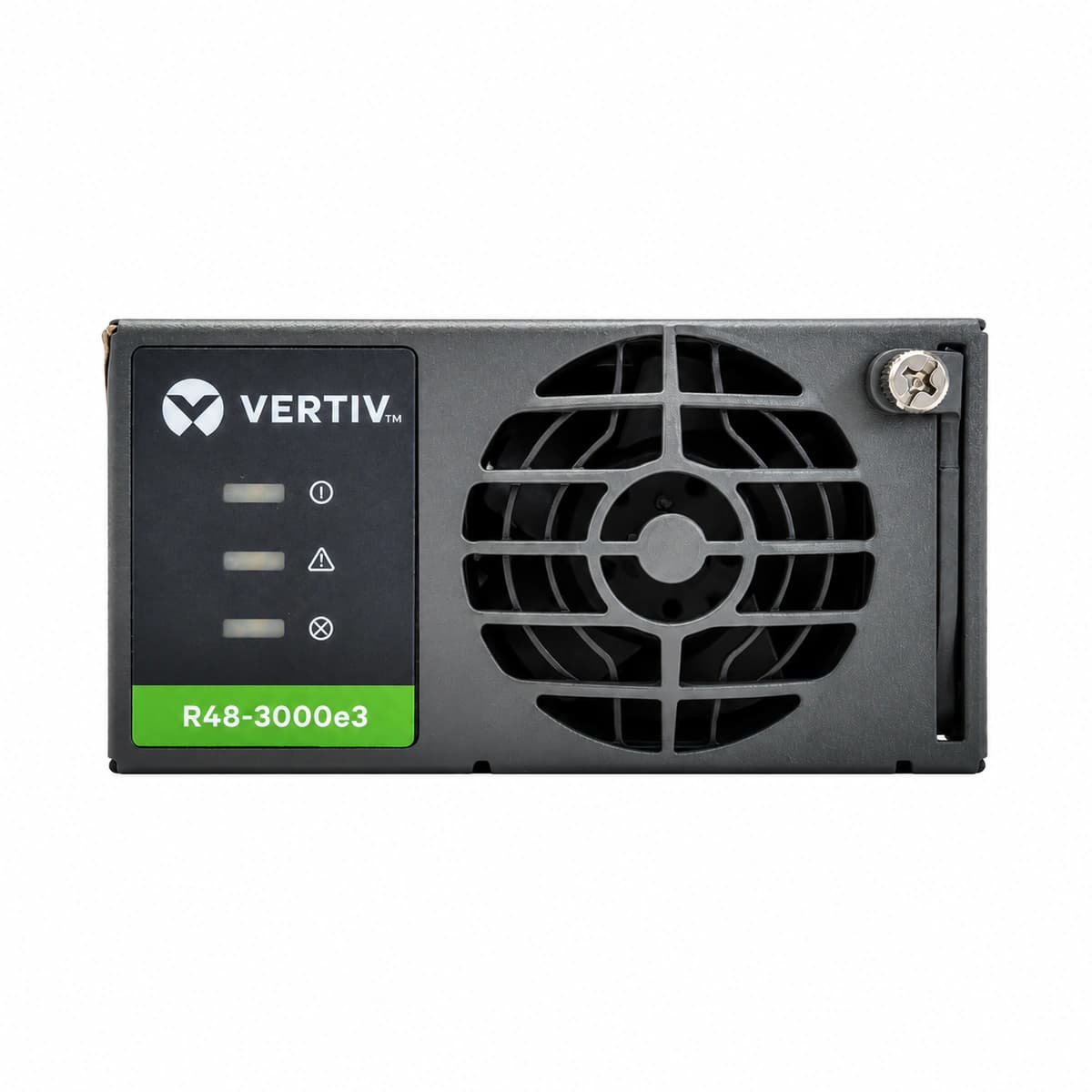

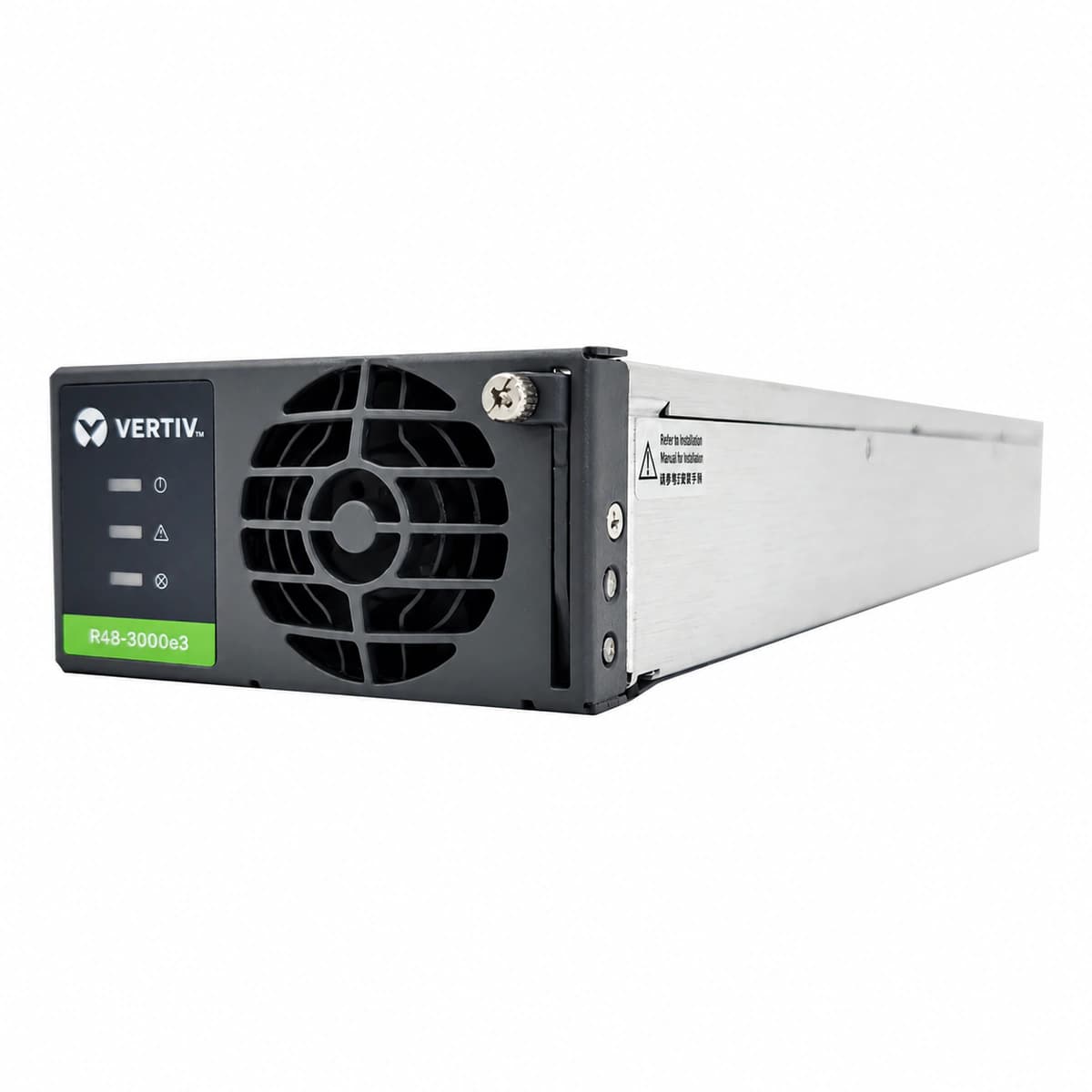

The Vertiv R48-3000e3 is an industrial high-efficiency switch-mode telecommunication rectifier module designed to convert standard AC input into regulated -48V DC power with up to 3000W output for telecom and enterprise mission-critical DC systems.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
The R48-3000e3 utilizes modern digital signal processor (DSP) control and resonant conversion topology to transform single-phase AC input (85V to 300V) into highly stable -48V DC output. It incorporates active Power Factor Correction (PFC), integrated variable-speed cooling fans, CAN bus communications, and built-in protection against overvoltage, overtemperature, and load short-circuits.
It addresses energy wastage, thermal dissipation stress, and unexpected site outages in demanding grid environments by maximizing conversion efficiency up to 96.2% and providing full hot-swap redundancy for continuous 24/7 telecommunication operations.
Compatible with Vertiv NetSure 500, 700, and 800 series DC power systems, outdoor telecom enclosures, wireless base station power plants, and edge computing DC architectures.
| Key specifications | Value |
|---|---|
| Output Voltage Range | -48VDC (-42V ~ -58V) VDC |
| AC Input Phase Voltage Range | 85 ~ 300 VAC |
| Overall System Efficiency | Up to 96.2% (Gold Standard) |
| Output Power Factor PF | ≥ 0.99 |
| Acoustic Noise | ≤ 55 dBA (at 25°C ambient load) |
| Wide Operating Temperature Range | -40 ~ +75°C |
| Ingress Protection Rating | IP20 (Indoor Dust & Finger Proof) |
| Total Harmonic Distortion (THD) | ≤ 5 % |
| Dielectric Withstand Voltage | 3000VAC Input to Ground (< 5mA) |
| Cooling Architecture | Forced-air cooling with intelligent speed control of the built-in fan |
