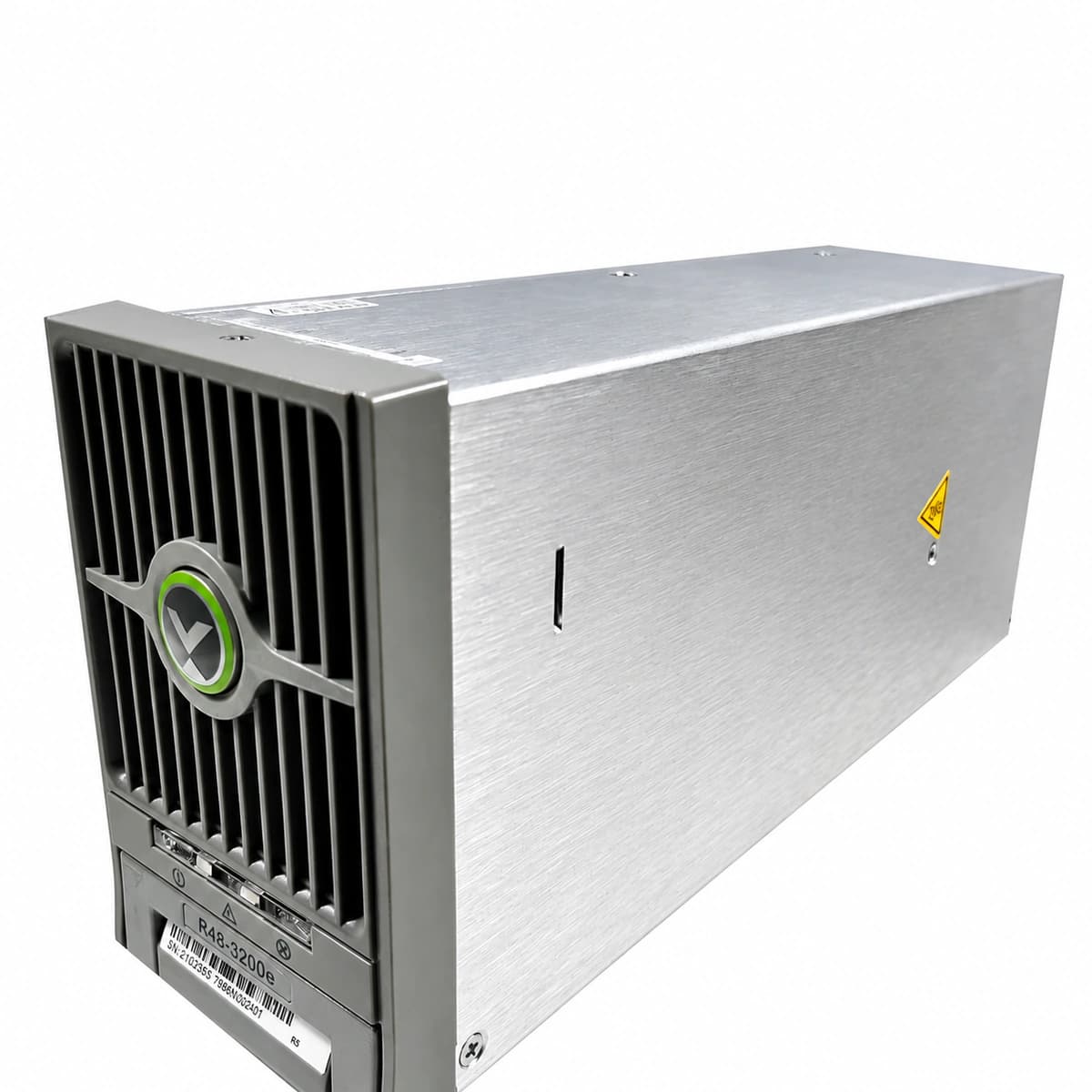

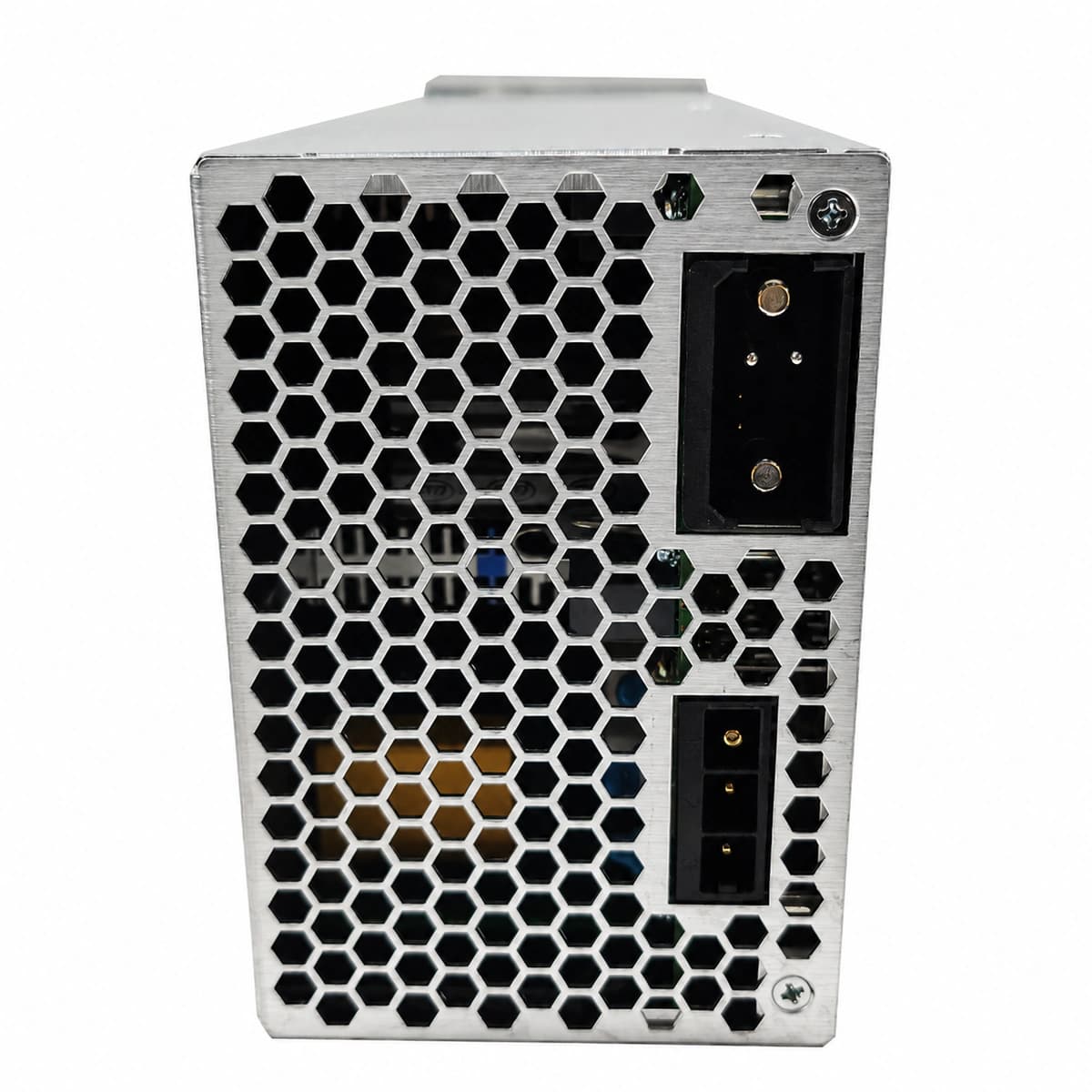

The Vertiv R48-3200e is a high-power-density digital telecom rectifier converting single-phase AC to high-precision -48V DC, engineered for extreme reliability in enterprise data hubs and 5G network centers.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
High-efficiency 3.2kW rack-mounted rectifier module compatible with Vertiv NetSure 500/700 series power shelves.
Drastically cuts carbon emissions and site operating expenses through 95%+ efficiency while supporting higher payload density in constrained racks.
5G aggregation hubs, central office facilities, modular edge data centers, and heavy-duty DC plant retrofits.
| Key specifications | Value |
|---|---|
| Rated Output Power | 3200W (59.3A @ 54V) |
| Power Conversion Efficiency | ≥ 96.2% |
| Overall System Efficiency | Up to 96.2% (Gold Standard) |
| Ingress Protection Rating | IP20 (Indoor Dust & Finger Proof) |
| Acoustic Noise | ≤ 55 dBA (at 25°C ambient load) |
| Dielectric Withstand Voltage | 3000VAC Input to Ground (< 5mA) |
| DC Output Voltage | -48VDC (-42V ~ -58V) V DC |
| AC Input Voltage | 85 ~ 300 V AC |
| Physical Dimensions | 132 × 85 × 287 mm |
| Operating Temperature Range | -40°C ~ +75°C |
