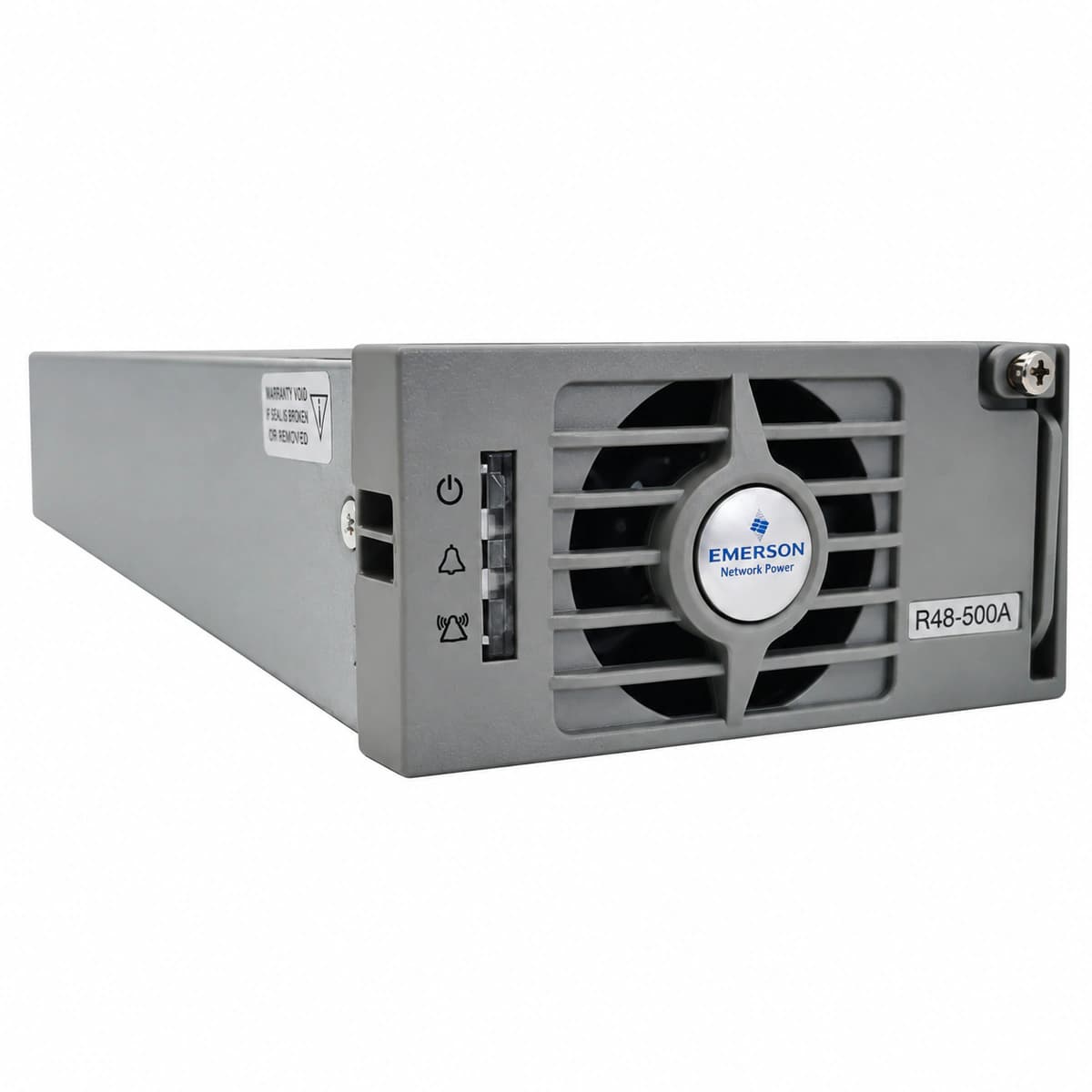

Vertiv R48-500A is an ultra-compact 1U telecom rectifier module delivering -48VDC/10A (500W), ideal for NetSure 212 subracks in small-cell sites.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Telecom-grade power infrastructure module designed for VERTIV power architecture.
Eliminates grid power anomalies and brownout hazards across mission-critical communication centers.
Cellular wireless sites, optical broadband hubs, edge computing racks, and industrial private networks.
| Key specifications | Value |
|---|---|
| AC Input Voltage | 80VAC ~ 300VAC VAC |
| DC Output Voltage | -48VDC (-42V ~ -58V) V DC |
| Cooling Method | Natural cooling / internal miniature forced-air cooling |
| Power Conversion Efficiency | ≥ 90.0% |
| Overall System Efficiency | Up to 96.2% (Gold Standard) |
| Acoustic Noise | ≤ 55 dBA (at 25°C ambient load) |
| Ingress Protection Rating | IP20 (Indoor Dust & Finger Proof) |
| Dielectric Withstand Voltage | 3000VAC Input to Ground (< 5mA) |
| Physical Dimensions | 86 × 44 × 210 mm |
| Operating Temperature Range | -40°C ~ +70°C |
