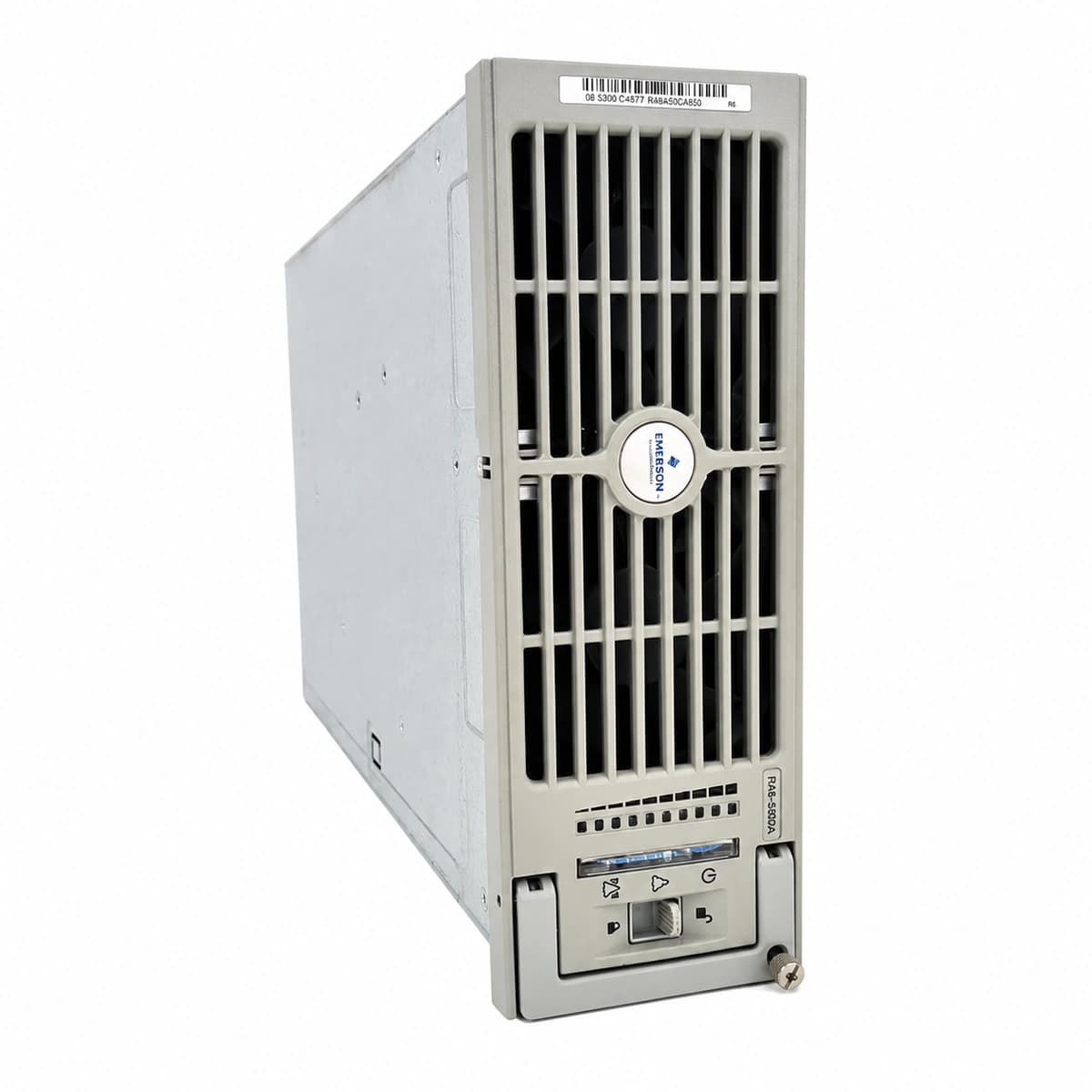

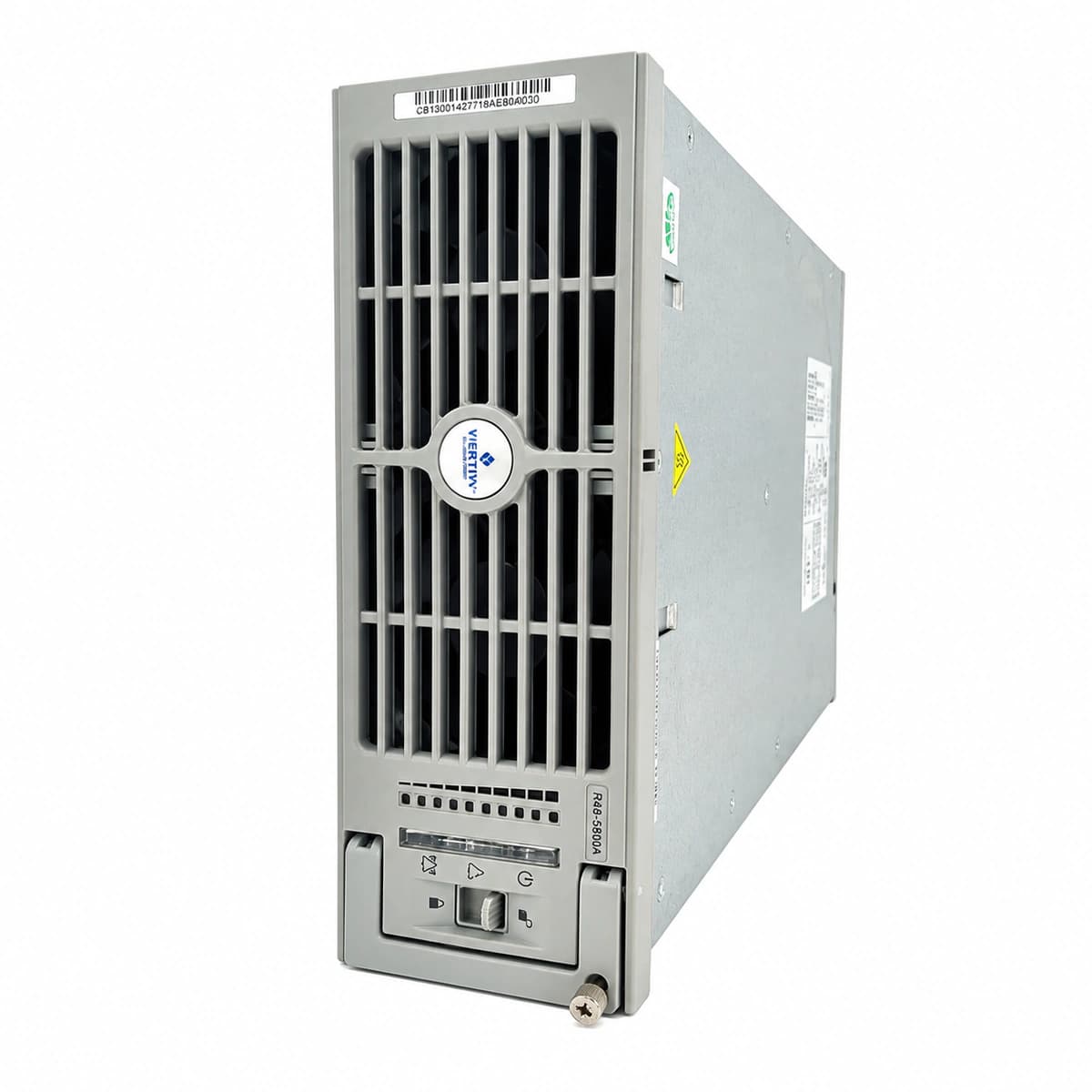

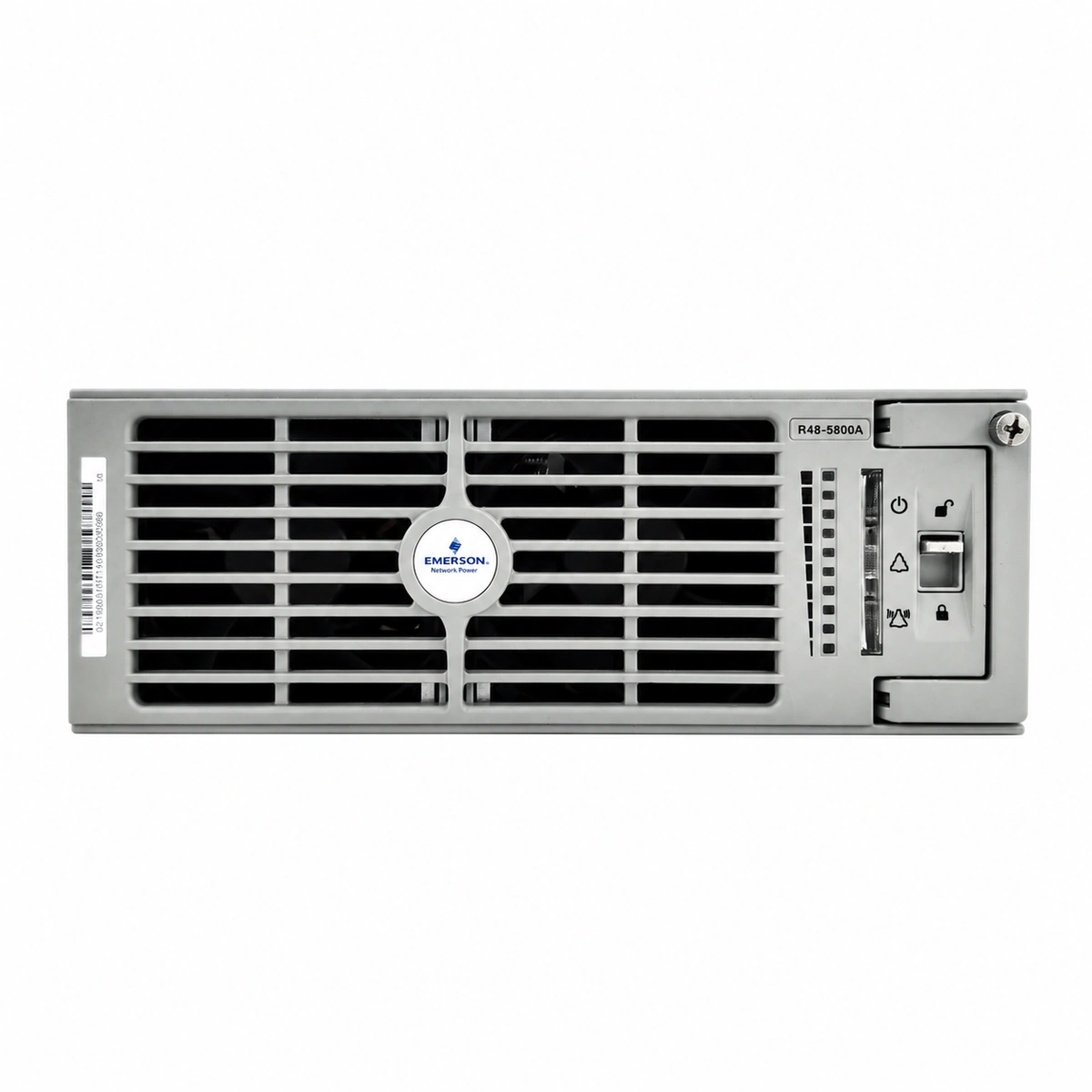

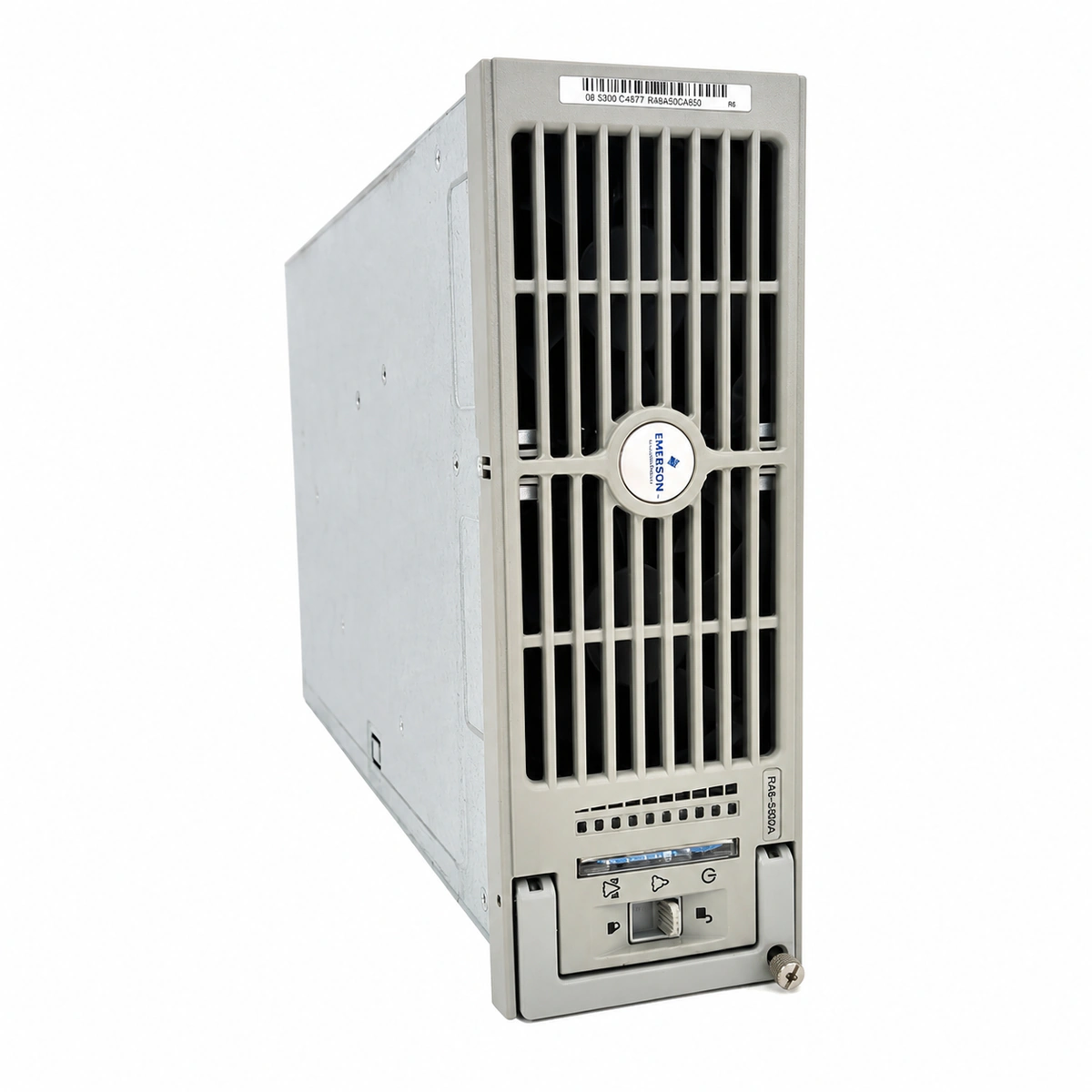

Vertiv R48-5800A is a heavy-duty 5800W (-48V/100A peak) switch-mode rectifier module for central office telecom power plants like NetSure 801.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Telecom-grade power infrastructure module designed for VERTIV power architecture.
Eliminates grid power anomalies and brownout hazards across mission-critical communication centers.
Cellular wireless sites, optical broadband hubs, edge computing racks, and industrial private networks.
| Key specifications | Value |
|---|---|
| AC Input Voltage | 260VAC ~ 530VAC (three-phase three-wire AC system) |
| DC Output Voltage | -48VDC (-42V ~ -58V) V DC |
| Overall System Efficiency | Up to 96.2% (Gold Standard) |

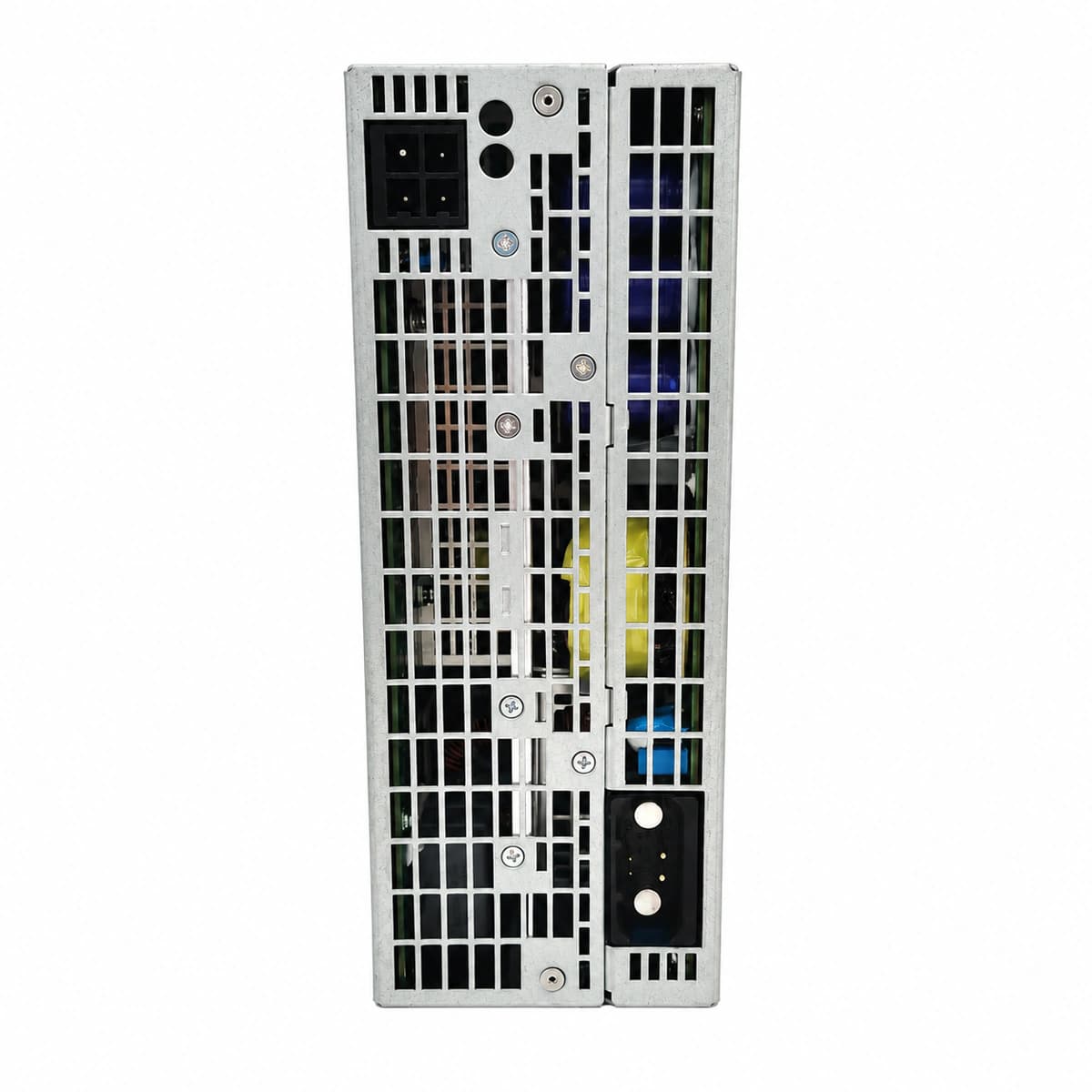

| Cooling Method | Rear-exhaust forced-air cooling with temperature-controlled stepless speed regulation |
| Power Conversion Efficiency | ≥ 96.0% |
| Acoustic Noise | ≤ 55 dBA (at 25°C ambient load) |
| Ingress Protection Rating | IP20 (Indoor Dust & Finger Proof) |
| Dielectric Withstand Voltage | 3000VAC Input to Ground (< 5mA) |
| Physical Dimensions | 132 (3U) × 85 × 287 mm |
| Operating Temperature Range | -40°C ~ +75°C |
