RICEWIND MCA0300 220VAC 300W Compact Embedded Industrial Cabinet AC Air Conditioner (IP55)
The RICEWIND MCA0300 is an industrial-grade outdoor telecom cabinet air conditioner delivering 300W of sensible cooling capacity under 220VAC 50Hz power input with IP55 ingress protection.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- Rated Cooling Capacity
- 300W (Compact Stable Output for Small Panels & CCTV Boxes)
- Power Supply System
- 220VAC +/-15% Single Phase 50Hz Mains (Running Current 1.1A) V AC
- Rated Input Power
- 235W (170 m³/h Airflow Rapidly Stabilizing Microclimate)
- Dimensions (H×W×D)
- 546 x 316 x 170 mm (With Flange 582x352x170 mm, 11 kg)
- Ingress Protection (IP Rating)
- IP55 Sealed Outdoor Ingress / Range -40°C to +55°C / Noise <=60 dB(A)
- Communication Interface
- RS485 Modbus Telemetry + NO/NC Alarm Dry Contacts
What this product is
What this product is

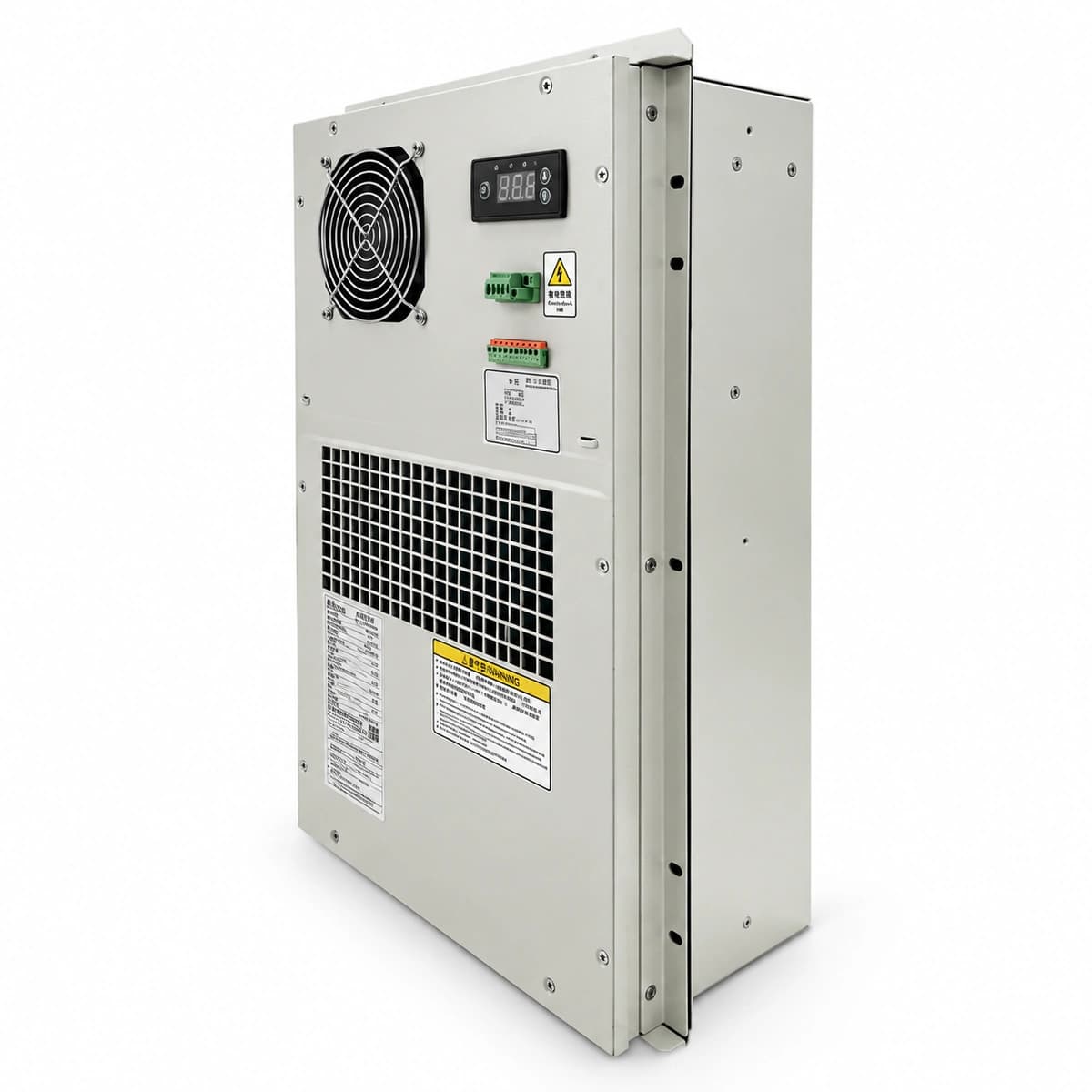

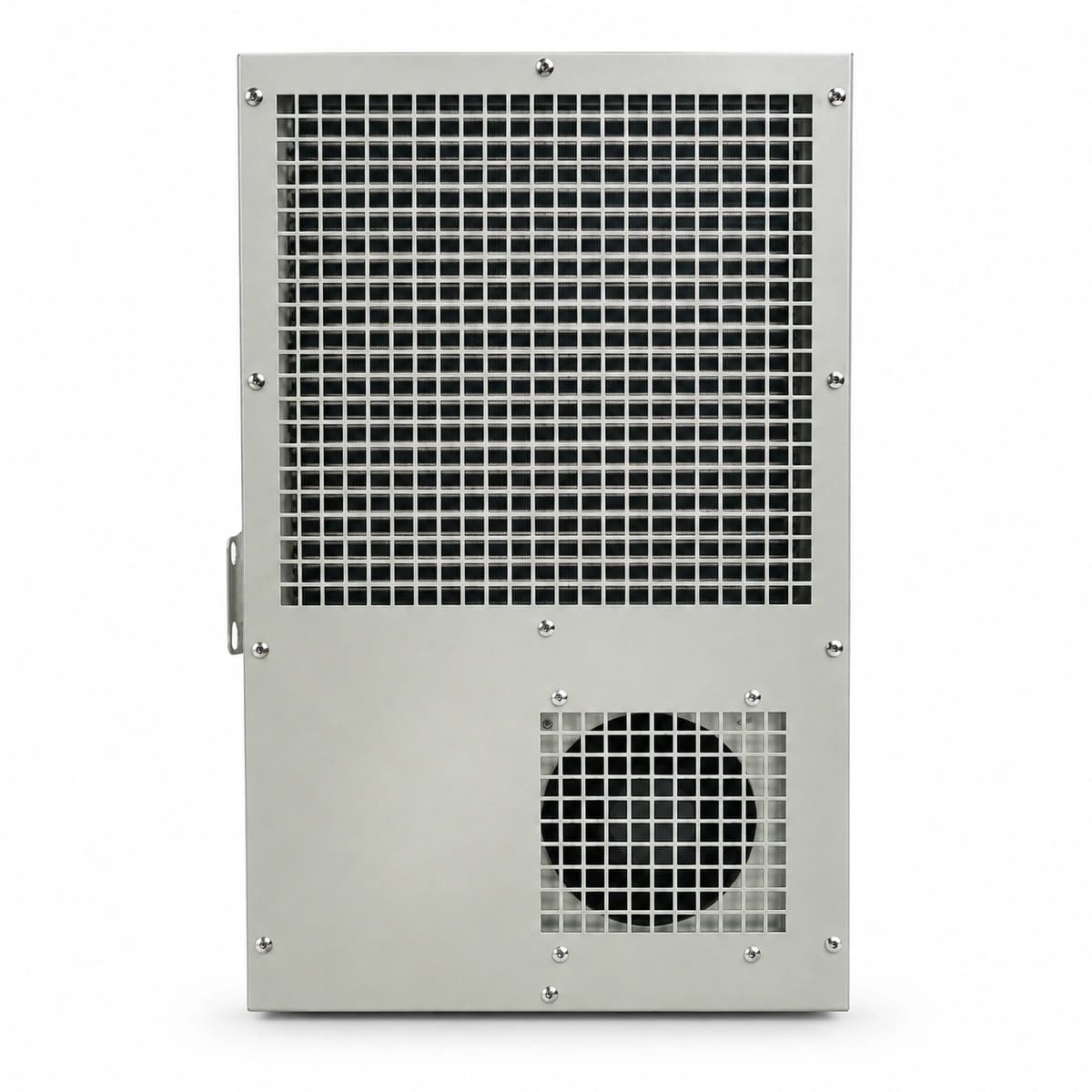

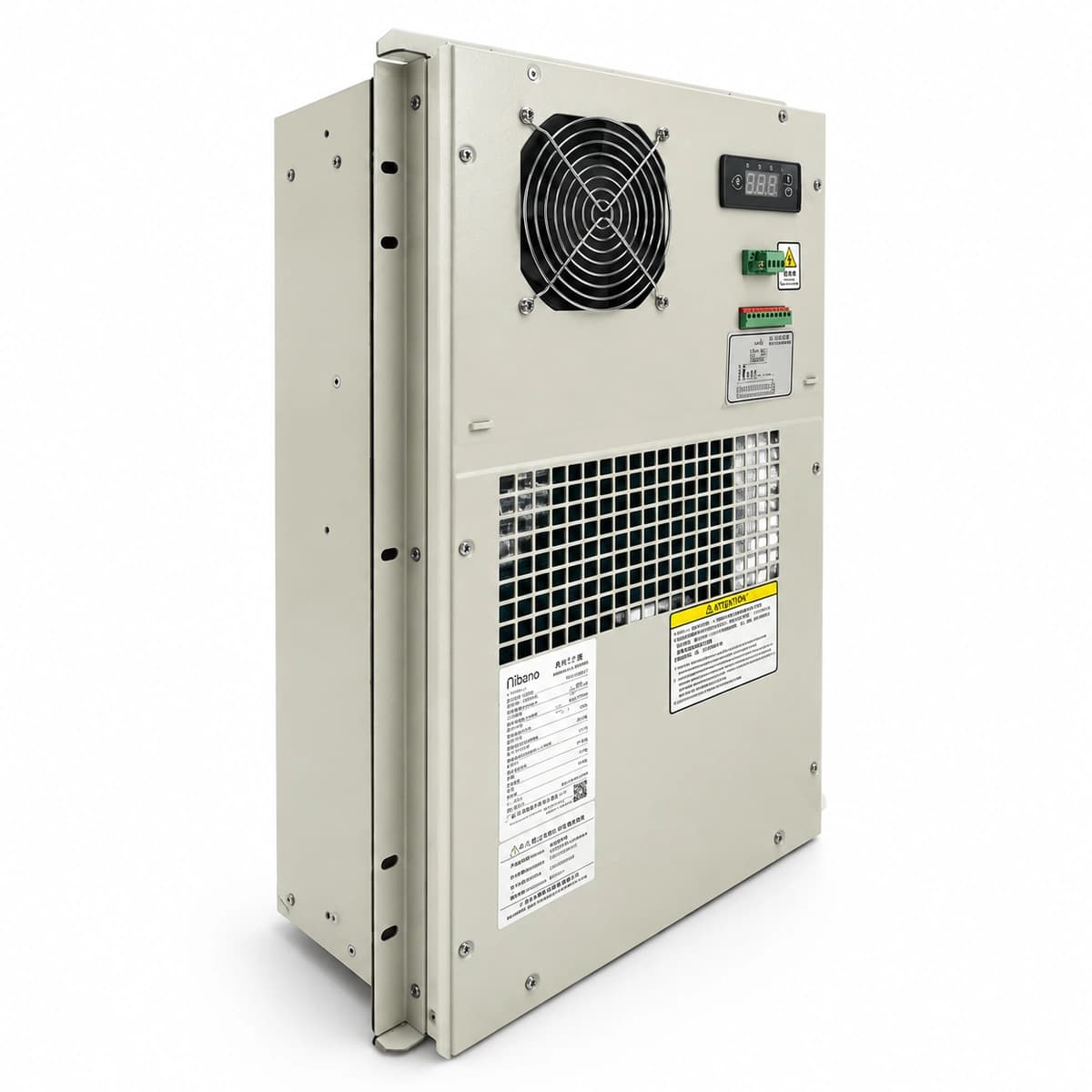

A ruggedized outdoor enclosure AC air conditioning unit designed for door or side-mount flange installation.
What problem it solves
Eliminates solar radiation heat buildup and equipment thermal shutdown while maintaining a hermetic IP55 seal against environmental dust, rain, and humidity.
Who and where it is for
5G telecom outdoor cabinets, solar hybrid base stations, traffic management field boxes, and energy storage battery compartments.
Core advantages
- 300W rated sensible cooling capacity with high-efficiency compressor consuming only 235W
- Dual completely isolated airflow circuits providing verified IP55 ingress protection
- Integrated RS485 Modbus-RTU telemetry interface for remote temperature and alarm monitoring
- Heavy-duty operational temperature range spanning -40°C to +55°C with anti-corrosion coating
Technical specifications
| Key specifications | Value |
|---|---|
| Rated Cooling Capacity | 300W (Compact Stable Output for Small Panels & CCTV Boxes) |
| Power Supply System | 220VAC +/-15% Single Phase 50Hz Mains (Running Current 1.1A) V AC |
| Rated Input Power | 235W (170 m³/h Airflow Rapidly Stabilizing Microclimate) |
| Dimensions (H×W×D) | 546 x 316 x 170 mm (With Flange 582x352x170 mm, 11 kg) |
| Ingress Protection (IP Rating) | IP55 Sealed Outdoor Ingress / Range -40°C to +55°C / Noise <=60 dB(A) |
| Communication Interface | RS485 Modbus Telemetry + NO/NC Alarm Dry Contacts |
Applications
01
Outdoor Telecom Wireless Base Station Sites
02
Smart Traffic and Highway Surveillance Enclosures
03
Solar Energy Storage and Remote Power Cabinets
04
Industrial Automation & Edge Computing Field Shelters
