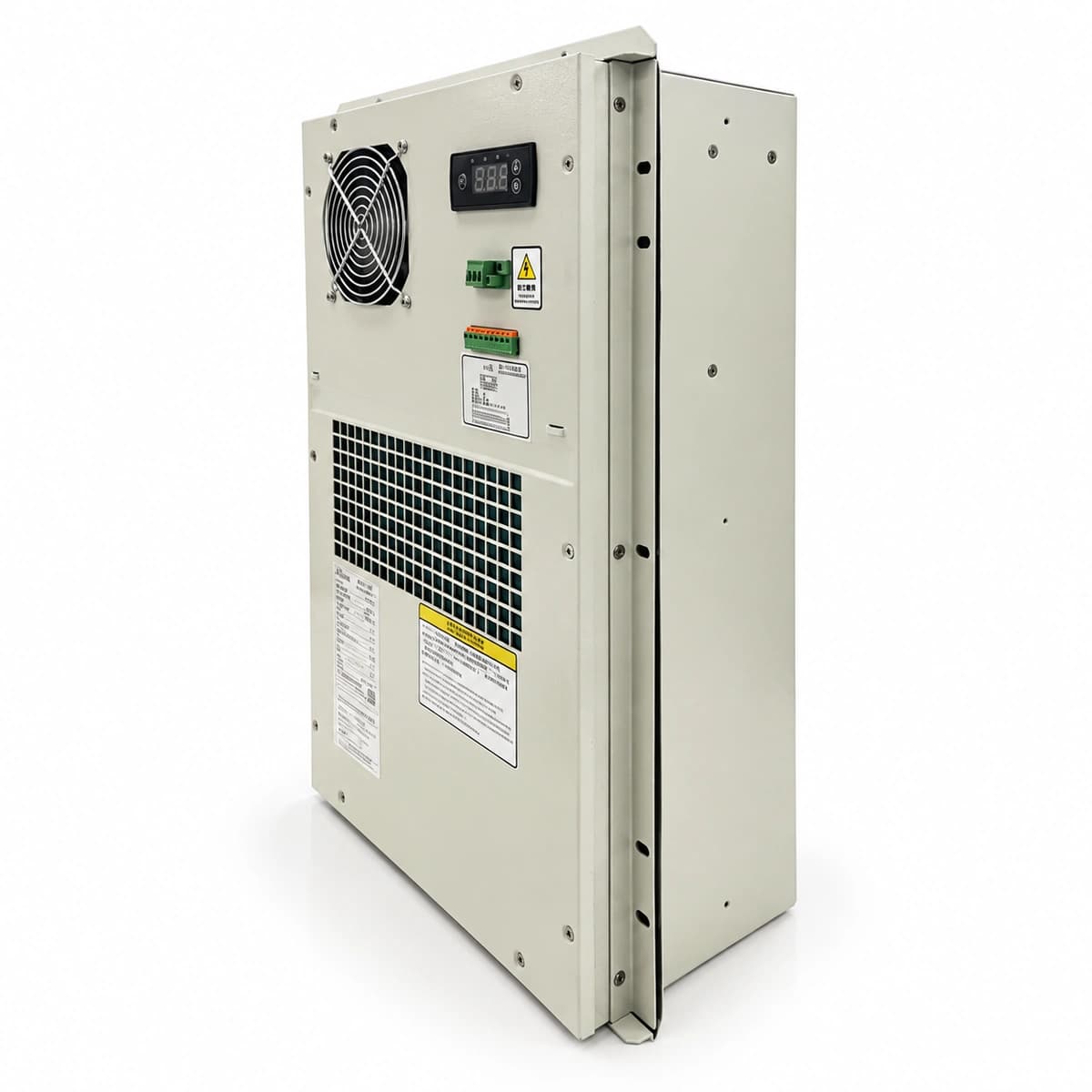

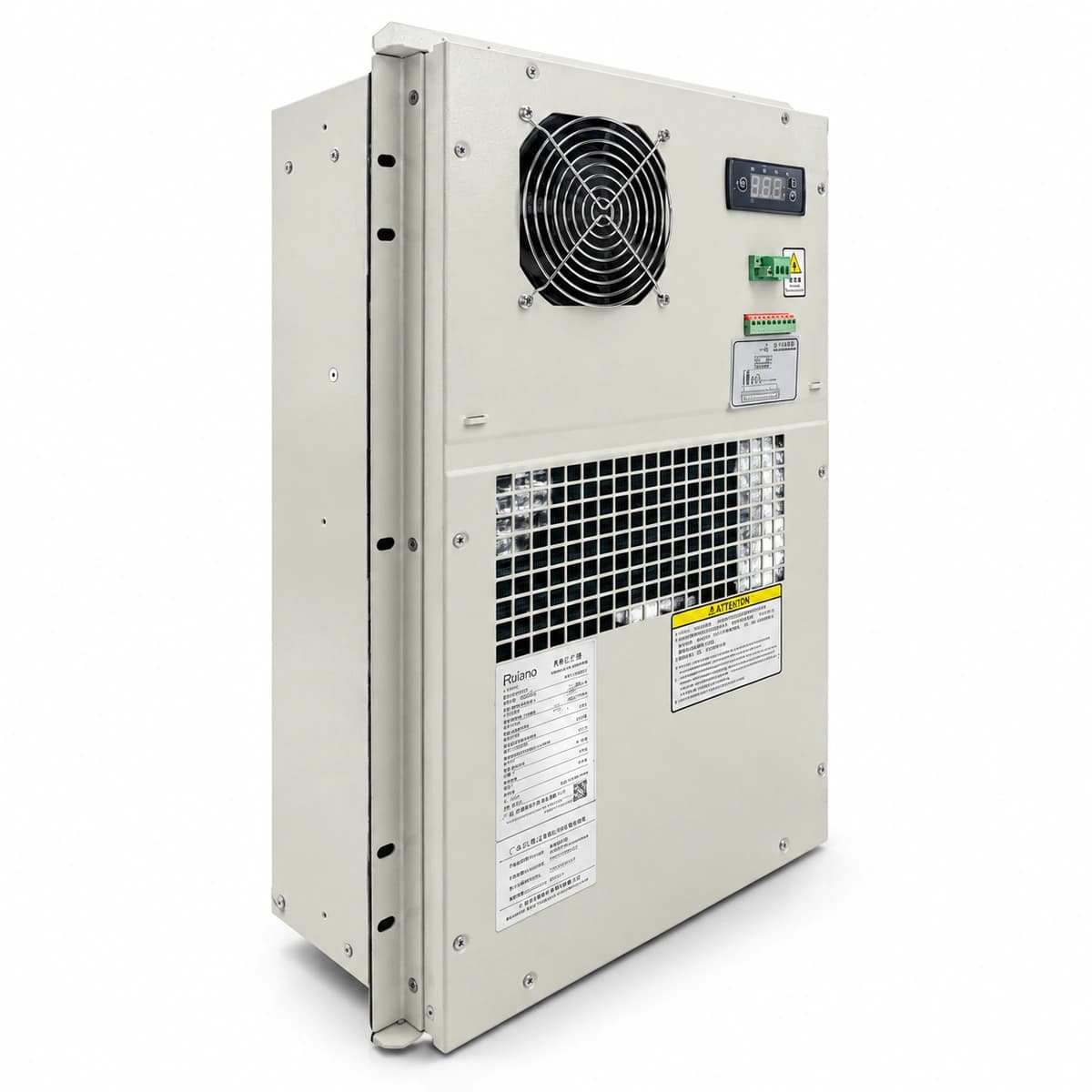

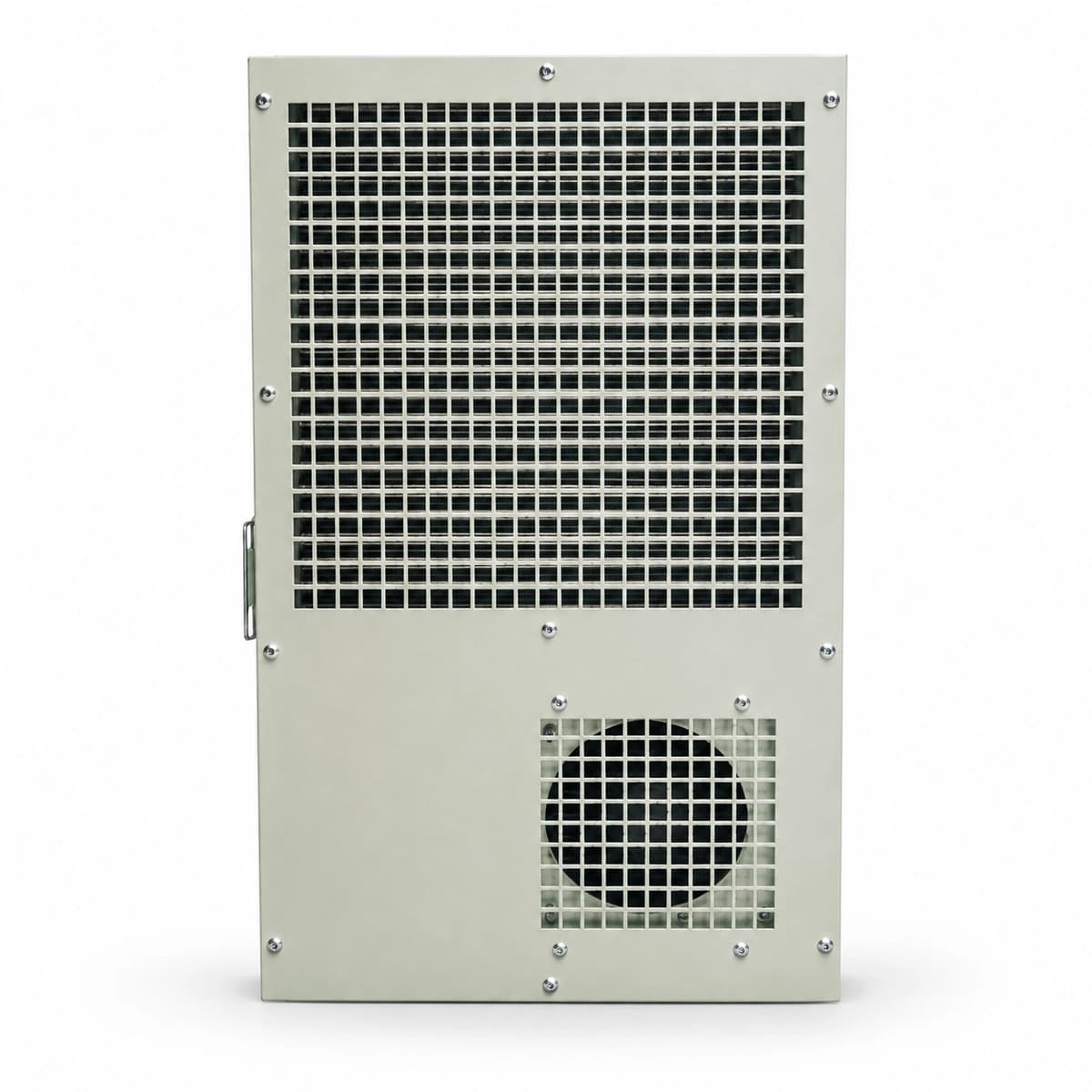

RICEWIND MCA0600 220VAC 60Hz Export-Grade Industrial Cabinet AC Air Conditioner (IP55)
The RICEWIND MCA0600 is an industrial-grade outdoor telecom cabinet air conditioner delivering 600W of sensible cooling capacity under 220VAC 60Hz power input with IP55 ingress protection.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- Rated Cooling Capacity
- 600W (Tuned for North America & South America 60Hz Grids)
- Power Supply System
- 220VAC +/-15% 60Hz Single Phase (Running Current 1.5A) V AC
- Rated Input Power
- 330W (120 m³/h Airflow Optimized for Standard Cabinet Ducts)
- Dimensions (H×W×D)
- 550 x 320 x 170 mm (With Flange 582x352x170 mm, 12.5 kg)
- Ingress Protection (IP Rating)
- Certified to CE, RoHS & EN 61000 Standards / IP55 Sealed
- Communication Interface
- Weatherproof Digital LED Display + RS485 Remote Telemetry
What this product is
What this product is
A ruggedized outdoor enclosure AC air conditioning unit designed for door or side-mount flange installation.
What problem it solves
Eliminates solar radiation heat buildup and equipment thermal shutdown while maintaining a hermetic IP55 seal against environmental dust, rain, and humidity.
Who and where it is for
5G telecom outdoor cabinets, solar hybrid base stations, traffic management field boxes, and energy storage battery compartments.
Core advantages
- 600W rated sensible cooling capacity with high-efficiency compressor consuming only 330W
- Dual completely isolated airflow circuits providing verified IP55 ingress protection
- Integrated RS485 Modbus-RTU telemetry interface for remote temperature and alarm monitoring
- Heavy-duty operational temperature range spanning -40°C to +55°C with anti-corrosion coating
Technical specifications
| Key specifications | Value |
|---|---|
| Rated Cooling Capacity | 600W (Tuned for North America & South America 60Hz Grids) |
| Power Supply System | 220VAC +/-15% 60Hz Single Phase (Running Current 1.5A) V AC |
| Rated Input Power | 330W (120 m³/h Airflow Optimized for Standard Cabinet Ducts) |
| Dimensions (H×W×D) | 550 x 320 x 170 mm (With Flange 582x352x170 mm, 12.5 kg) |
| Ingress Protection (IP Rating) | Certified to CE, RoHS & EN 61000 Standards / IP55 Sealed |
| Communication Interface | Weatherproof Digital LED Display + RS485 Remote Telemetry |
Applications
01
Outdoor Telecom Wireless Base Station Sites
02
Smart Traffic and Highway Surveillance Enclosures
03
Solar Energy Storage and Remote Power Cabinets
04
Industrial Automation & Edge Computing Field Shelters
