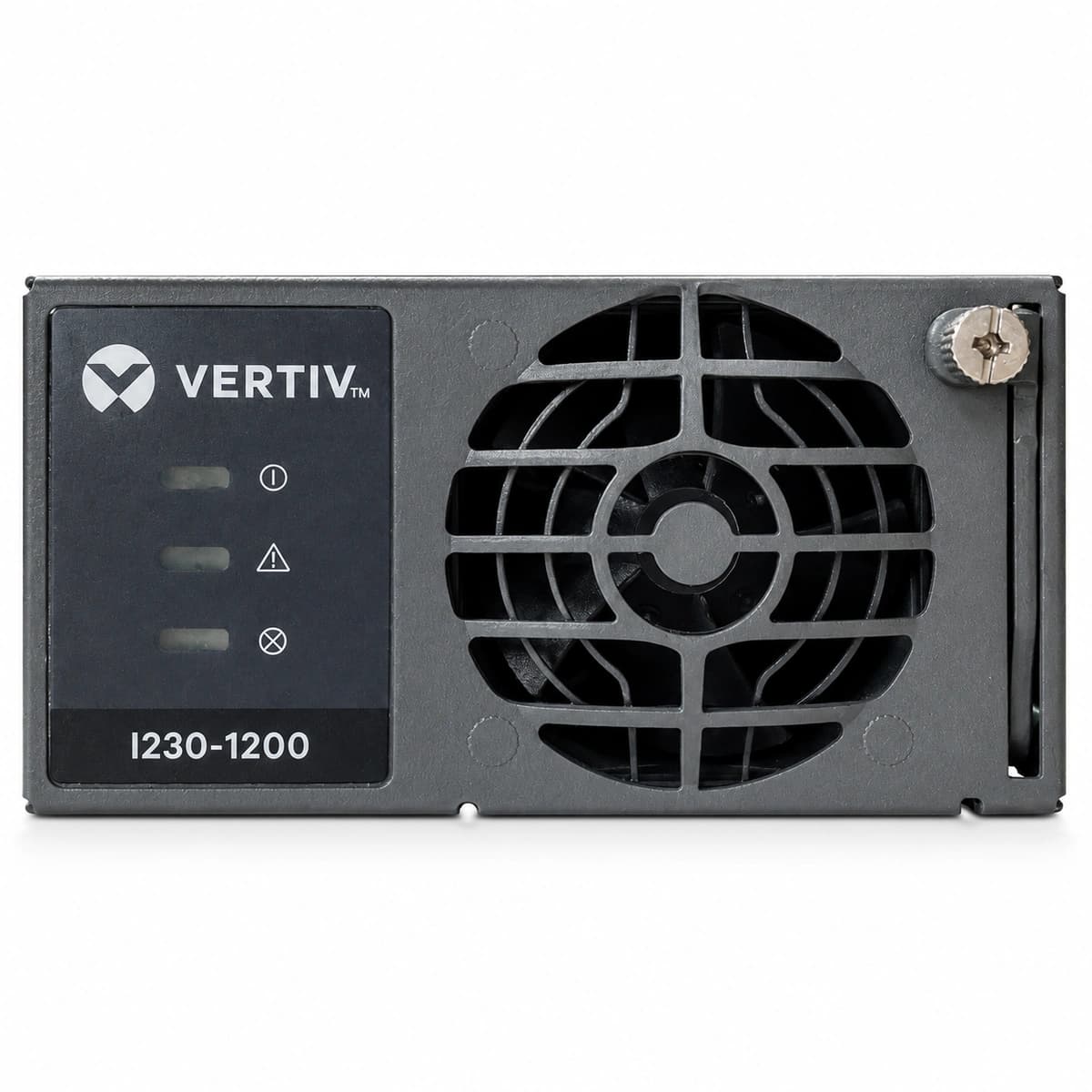

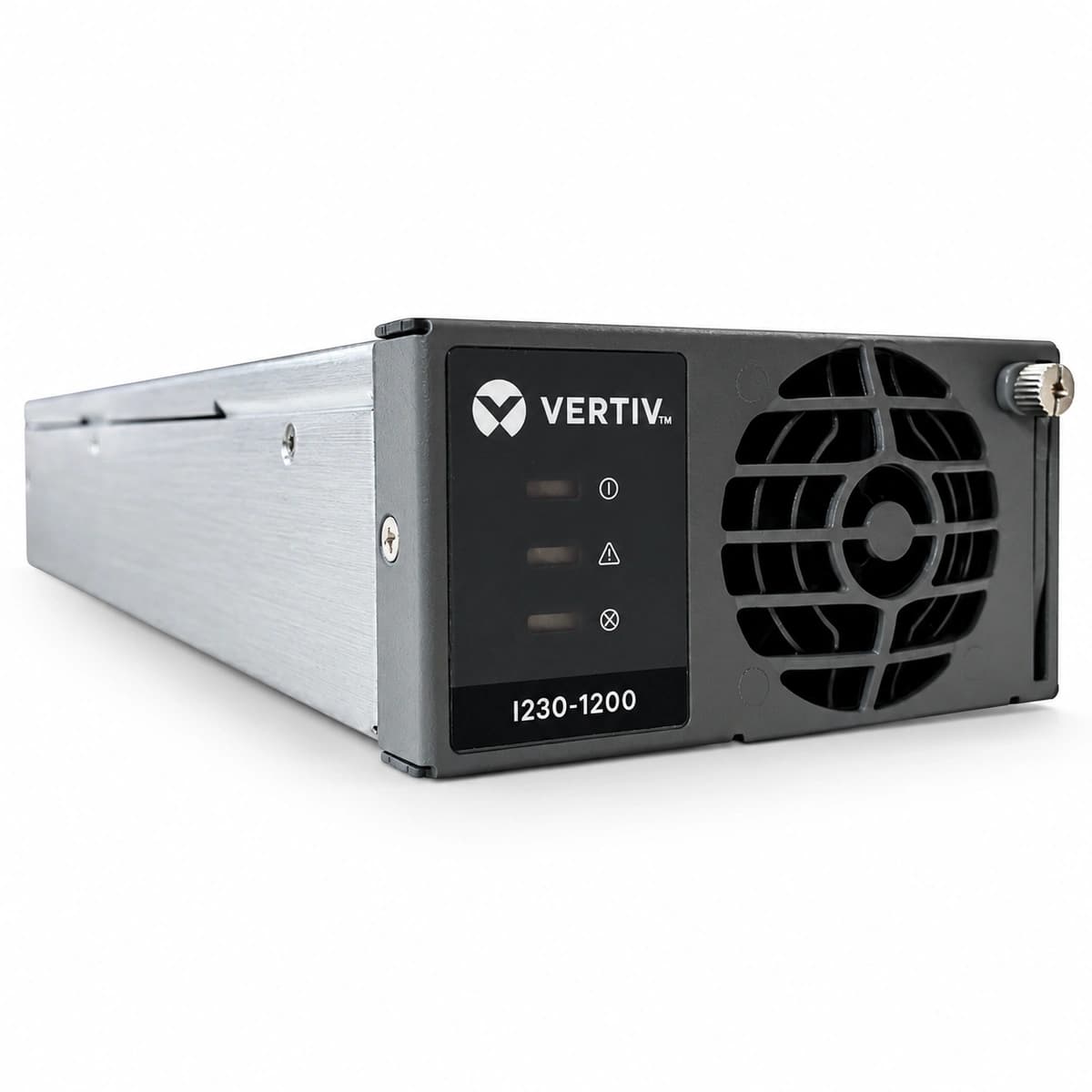

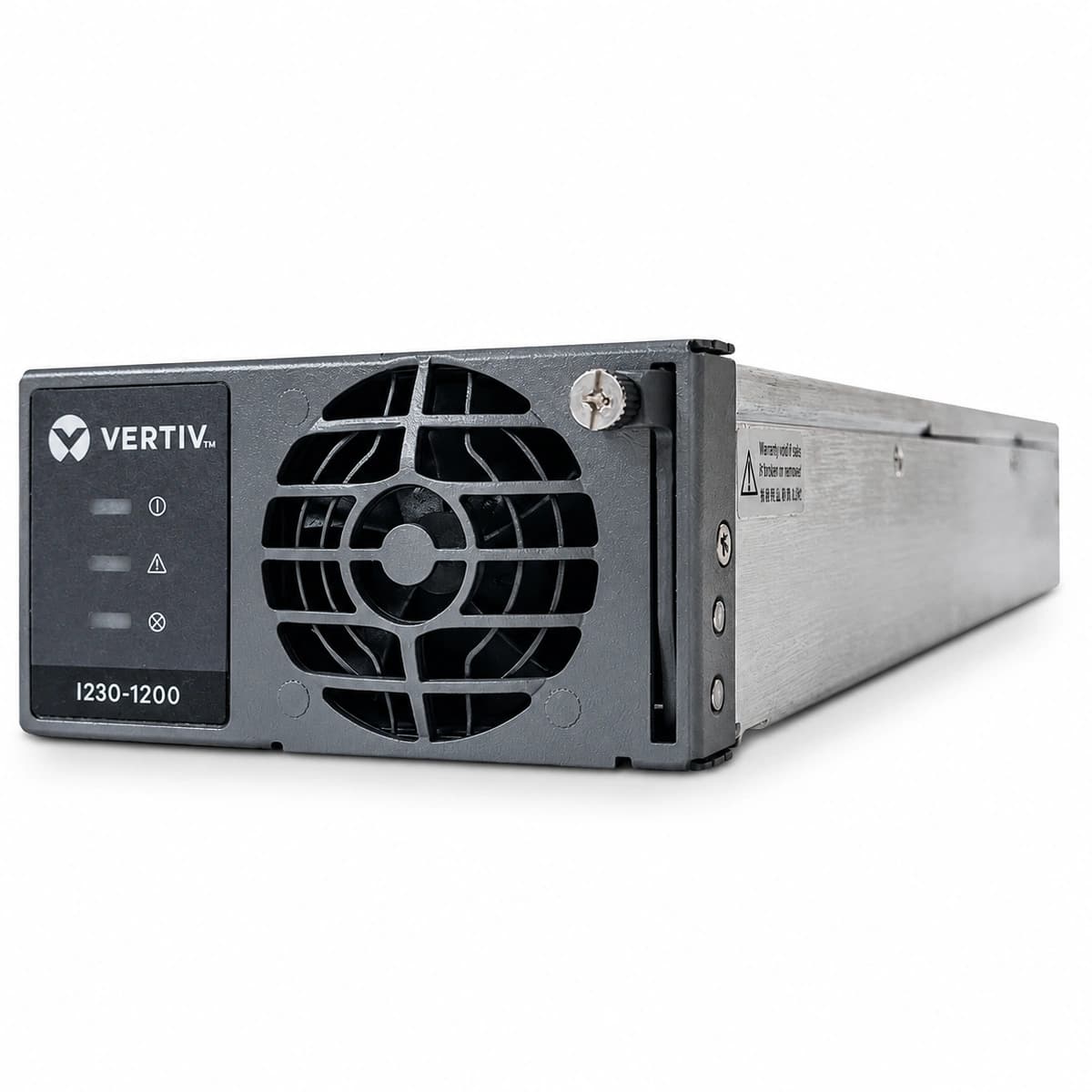

The Vertiv I230-1200 is a carrier-grade rack-mounted pure sine wave industrial inverter module engineered for telecommunications and mission-critical power architectures. Operating from a nominal 48V DC bus (40V to 60V DC input range), it delivers a regulated 230V AC ±2% pure sine wave output with a continuous rated capacity of 1200VA / 1000W, featuring true hot-swappable capability and N+1 parallel redundancy support.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Architecturally, the Vertiv I230-1200 utilizes a two-stage high-frequency galvanic conversion topology. The input stage incorporates high-capacitance DC filtering and polarity protection, transitioning through a high-frequency isolated DC-DC boost converter to a stable intermediate DC link. A high-speed 32-bit DSP actively modulates the full-bridge inverter stage and precise LC reconstruction filter, generating ultra-clean sine wave AC output with microsecond-level transient response, low EMI emission, and strict compliance with telecom telecommunications standards.
The I230-1200 eliminates the vulnerability of running critical AC communications hardware from unstable local mains grids or rudimentary square-wave backup units. It resolves equipment failures caused by utility phase jitter, brownouts, voltage spikes, and common-mode grid noise by deriving pristine 230V AC directly from the facility's reliable 48V battery bank. Its live hot-pluggability minimizes Mean Time to Repair (MTTR) by allowing module replacement without disrupting the downstream AC distribution bus.
Ideal for telecom central offices (COs), 5G macro and micro base transceiver stations (BTS), electrical substation automation systems, railway signaling and wayside trackside infrastructure, SCADA control racks, and industrial edge computing systems requiring uninterruptible AC power backed by 48V DC plant reserves.
| Key specifications | Value |
|---|---|
| Cooling Method | Temperature-Controlled Front-to-Rear Airflow |
| DC Input Voltage | 48V DC (40V~60V DC) |
| Rated Output Power | 1200VA / 1000W |
| AC Output Voltage | -48VDC (-42V ~ -58V) |
| Maximum Efficiency | ≥ 92.0% |
| Operating Temperature Range | -40°C ~ +75°C |
| Cooling System | Forced Air Cooling with Intelligent Speed Fan |
| Hot-Swappable Support | Yes (Live Hot-Pluggable / Plug-and-Play without Power Interruption) |
