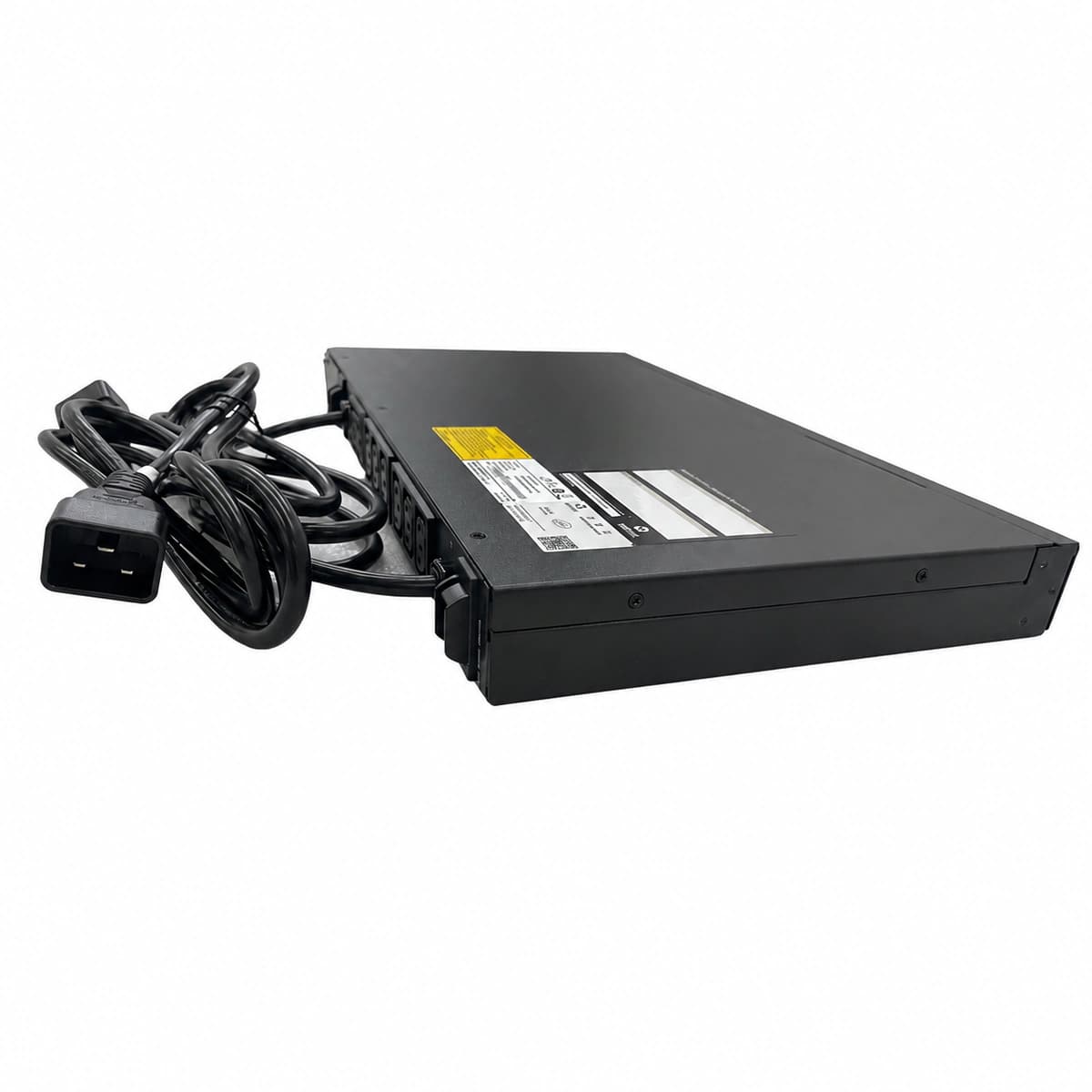

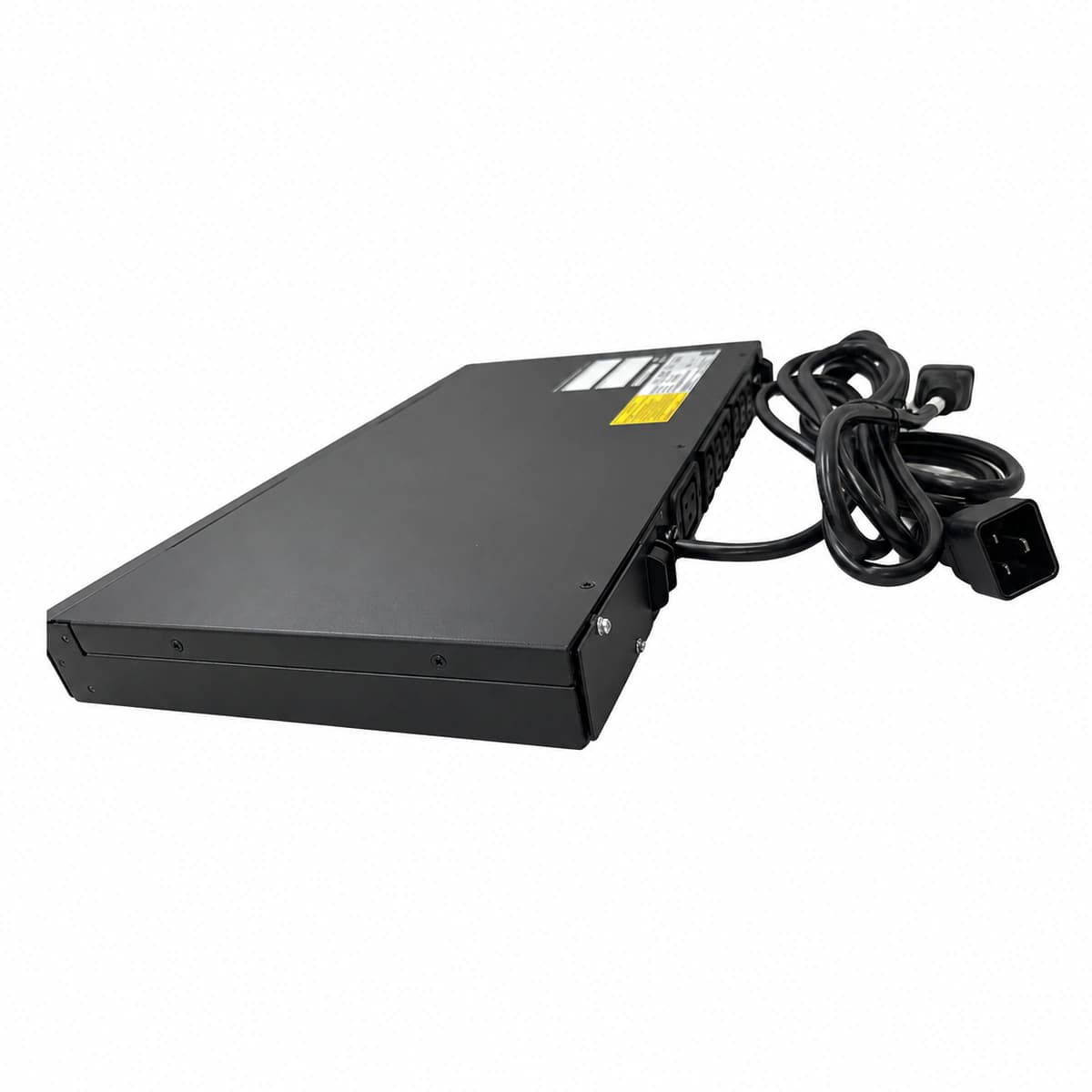

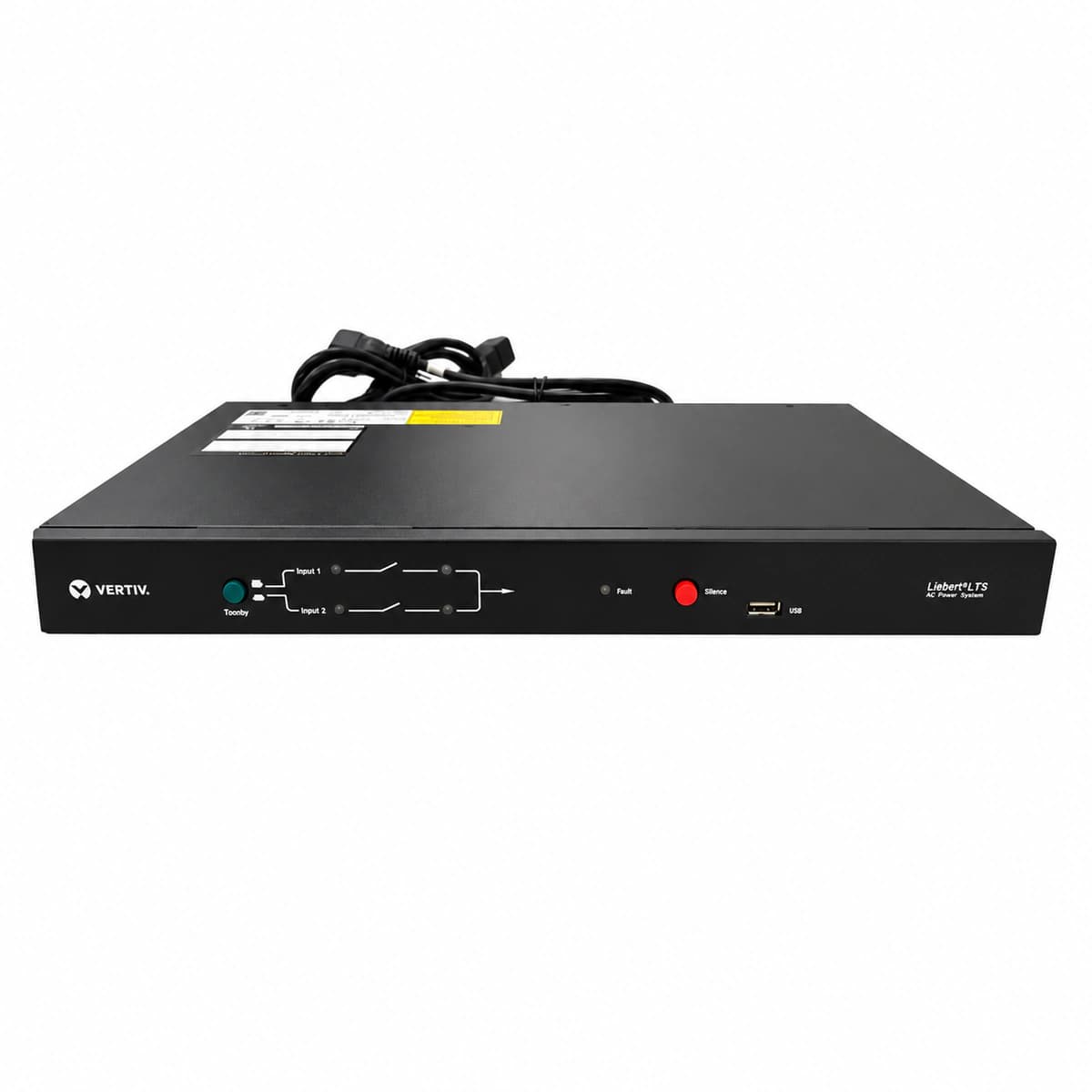

Vertiv UF-LTS16-1P Static Transfer Switch (Single-Phase 16A 1U Rackmount STS) - Isometric 45-Degree Angled View
VertivModel: UF-LTS16-1P

Vertiv UF-LTS16-1P Static Transfer Switch (Single-Phase 16A 1U Rackmount STS)

The Vertiv UF-LTS16-1P is a compact 16A single-phase 1U Static Transfer Switch engineered for single telecom racks and branch IT servers requiring sub-5ms uninterrupted dual-feed redundancy.

Talk to RICEWIND

Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.

Request a quoteWhatsApp
Tel+86 17621197907

Clear support from selection to delivery

360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
Rated AC Current
16A Standard Rack Output
Nominal Voltage Specification
220V / 230V / 240V AC (50/60Hz)
Transfer Switching Time
<5ms Seamless Power Transfer
Chassis Form Factor
19-Inch Rackmount
Monitoring Indicators
Dual-Source Flow LEDs + Relay
Reliability MTBF
> 250,000 Hours (Industrial MTBF)

What this product is

What this product is

The Vertiv UF-LTS16-1P is a compact 16A single-phase 1U Static Transfer Switch engineered for single telecom racks and branch IT servers requiring sub-5ms uninterrupted dual-feed redundancy.

What problem it solves

Resolves power grid instability, excessive OPEX energy dissipation, battery degradation, and rack footprint constraints.

Who and where it is for

5G cellular cell sites, core telecom DC plants, AI data centers, transport networks, and critical industrial DC UPS.

Core advantages

  • Tailored 16A Rating: Perfectly sized for single-rack network switches, routers, and edge nodes.
  • Continuous Dual-Line Sensing: Constantly evaluates voltage and frequency across both incoming feeds.
  • Silent Solid-State Operation: SCR switches produce zero acoustic noise and require zero mechanical maintenance.
  • Standard IEC Connectivity: Seamless interconnection with standard rack PDUs and electrical whips.

Technical specifications

Key specificationsValue
Rated AC Current16A Standard Rack Output
Nominal Voltage Specification220V / 230V / 240V AC (50/60Hz)
Transfer Switching Time<5ms Seamless Power Transfer
Monitoring IndicatorsDual-Source Flow LEDs + Relay
Reliability MTBF> 250,000 Hours (Industrial MTBF)
Chassis Form Factor19-Inch Rackmount
Overall System EfficiencyUp to 96.2% (Gold Standard)
Acoustic Noise≤ 55 dBA (at 25°C ambient load)
Ingress Protection RatingIP20 (Indoor Dust & Finger Proof)
Dielectric Withstand Voltage3000VAC Input to Ground (< 5mA)

Applications

01

Telecom 4G/5G macro cellular base stations and distributed remote power sites

02

Enterprise-grade cloud data center mission-critical -48V DC power distribution lineups

03

Utility power grid dispatch centers and high-voltage substation DC switchgear rooms

04

Railway transit signaling, automated train control, and communications equipment rooms
