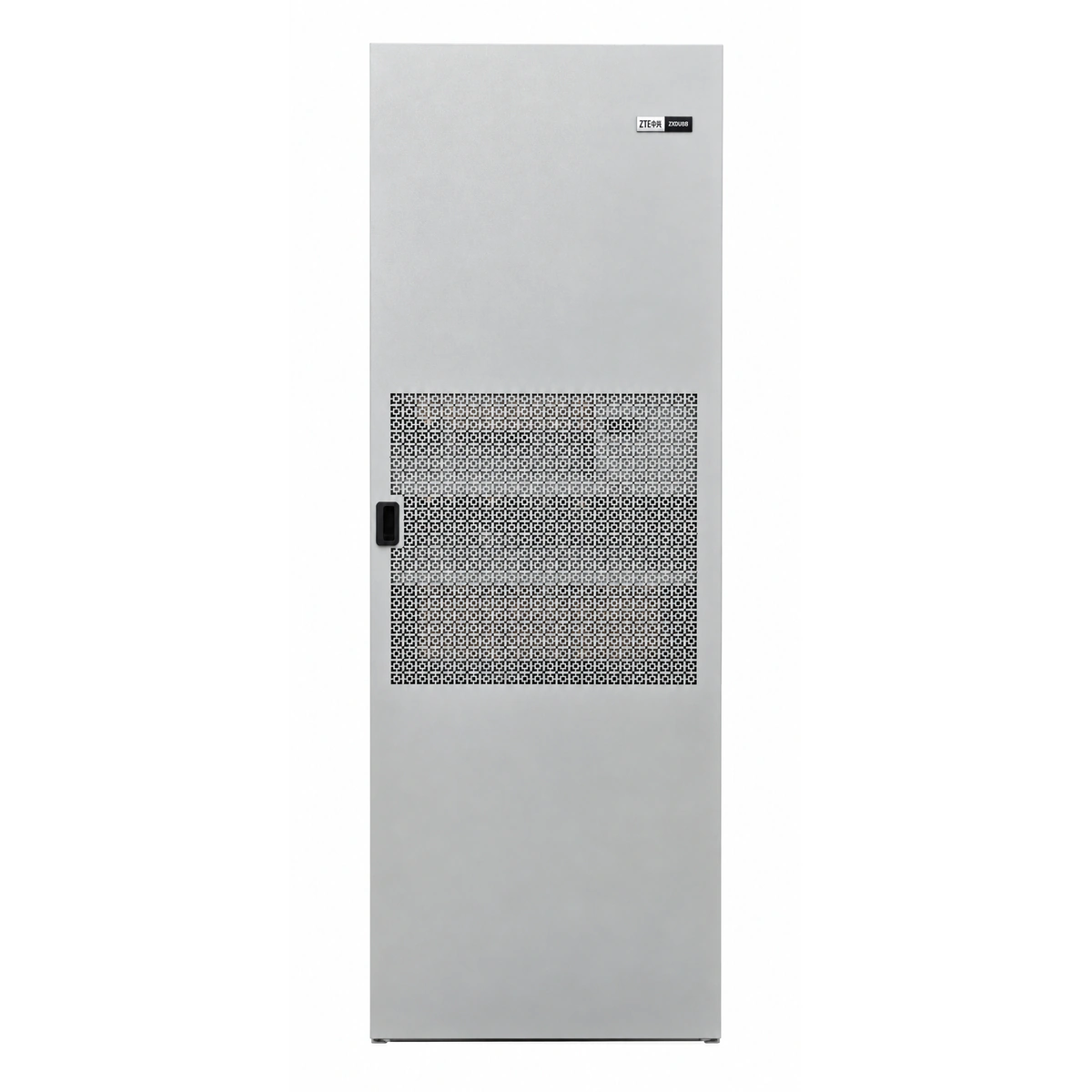

ZTE ZXDU68 T601 Floor-Standing Telecommunications DC Power Cabinet (-48V 600A High Capacity) - Official Front View
ZTEModel: ZXDU68 T601

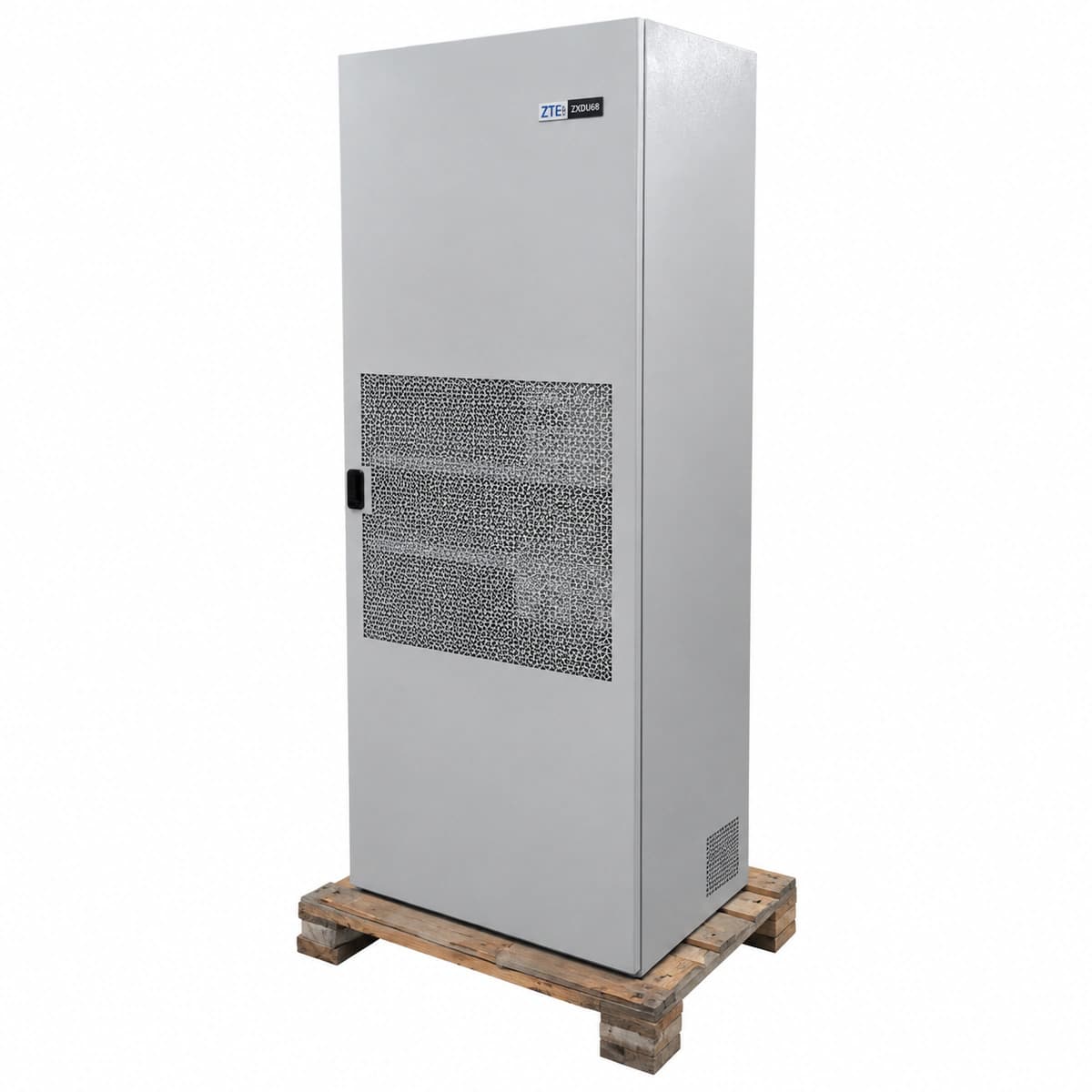

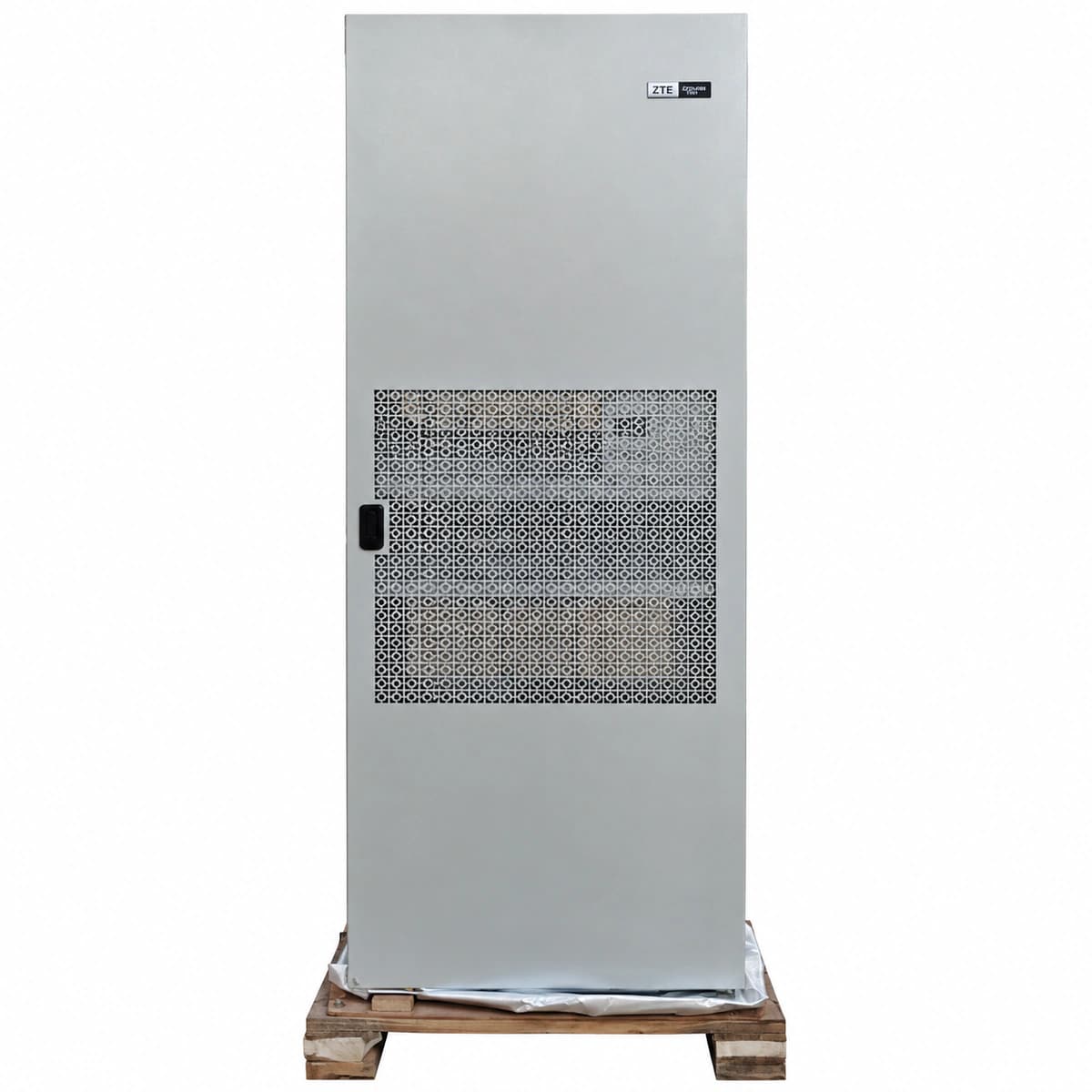

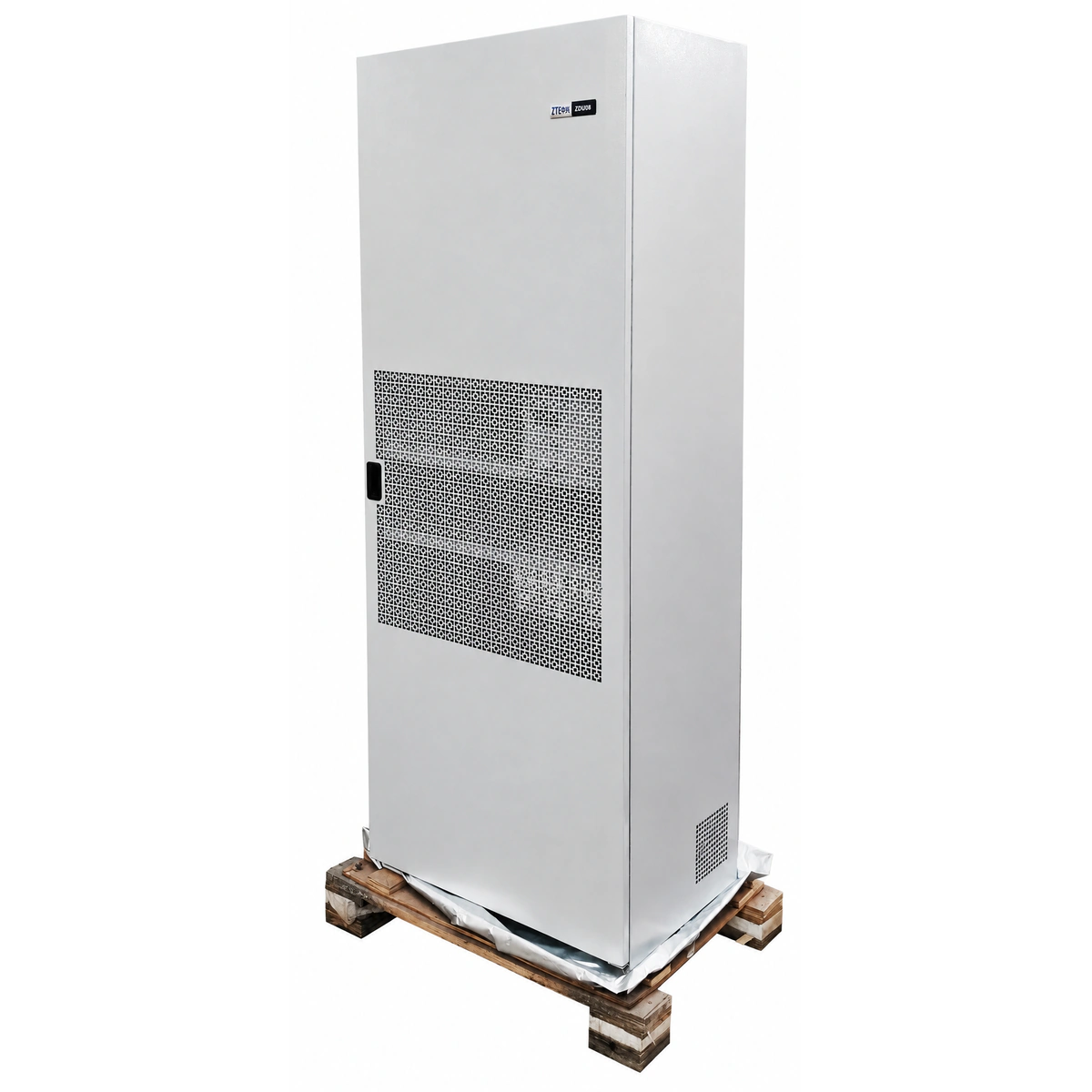

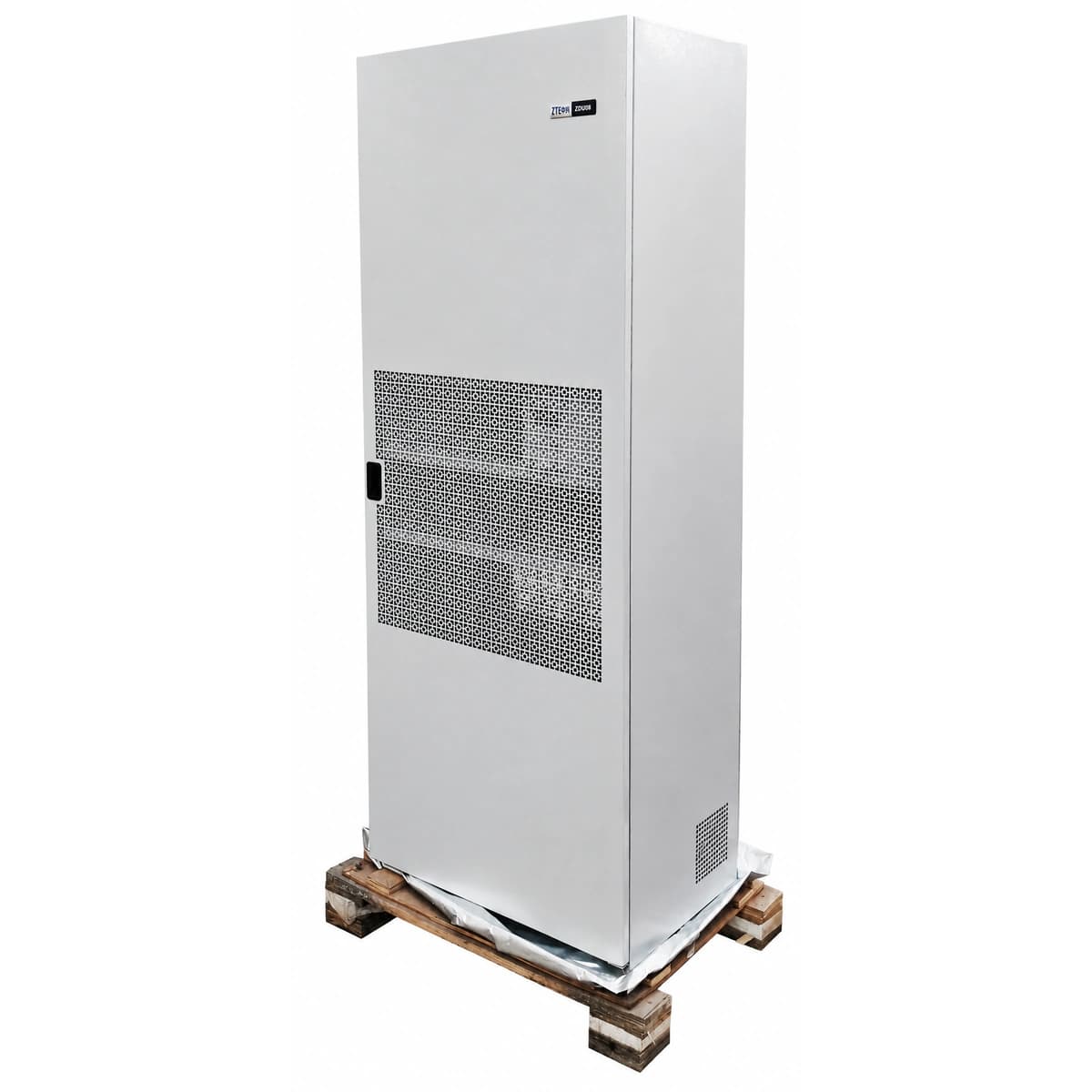

ZTE ZXDU68 T601 Floor-Standing Telecommunications DC Power Cabinet (-48V 600A High Capacity)

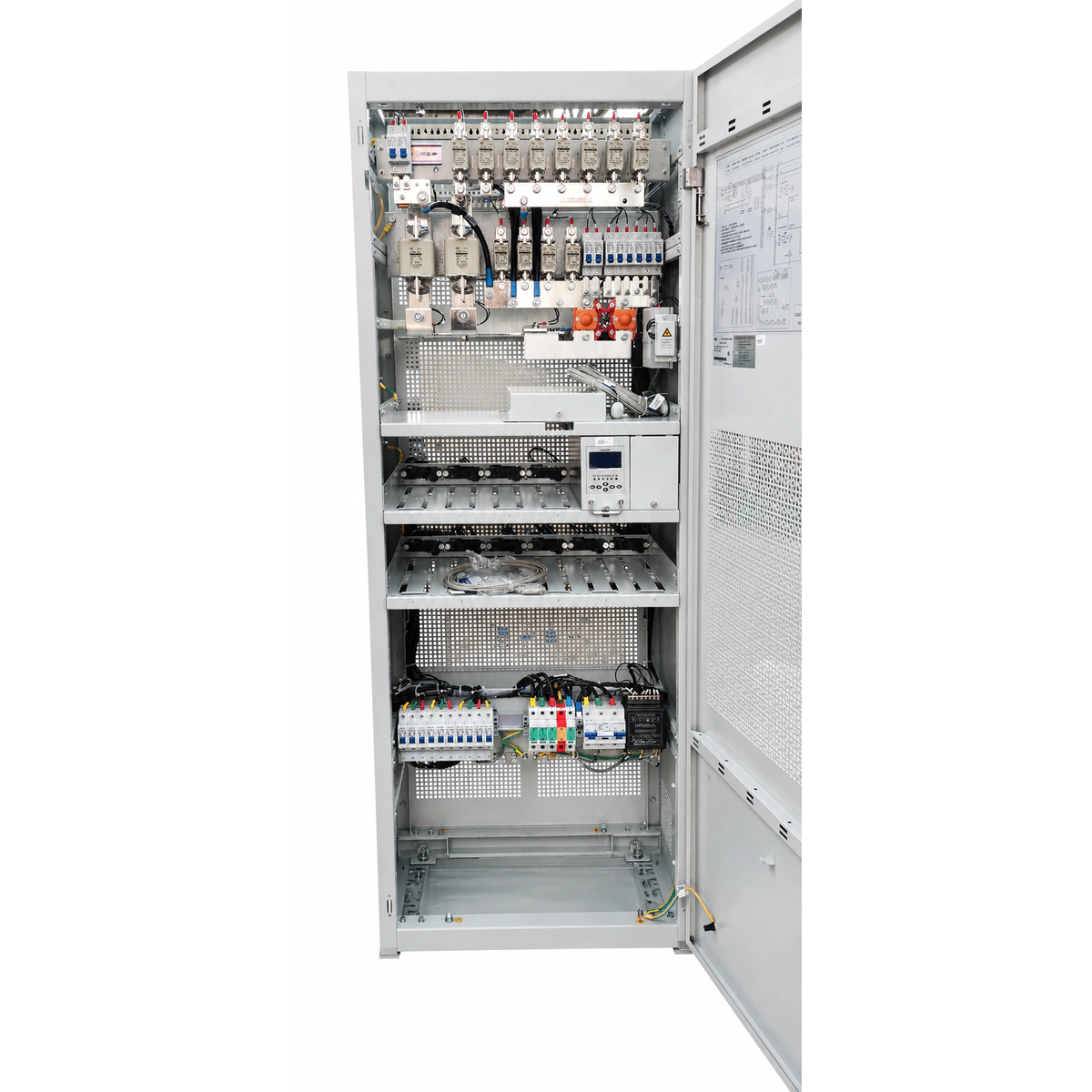

The ZTE ZXDU68 T601 is a high-capacity floor-standing telecom DC power plant delivering -48V 600A, integrating AC distribution, high-efficiency rectifier shelves, DC distribution breakers, and a central CSU supervisor.

Talk to RICEWIND

Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.

Request a quoteWhatsApp
Tel+86 17621197907

Clear support from selection to delivery

360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
Rated System Output Capacity
Floor-Standing (Up/Downflow) A
Supported Rectifier Modules
ZTE ZXD2400 / ZXD3000 Series
AC Power Distribution
380V 3-Phase / 220V 1-Phase Compatible
DC Branch Distribution
Multi-way MCBs & Fuses (LLVD + BLVD)
Central Supervisory Monitoring Unit

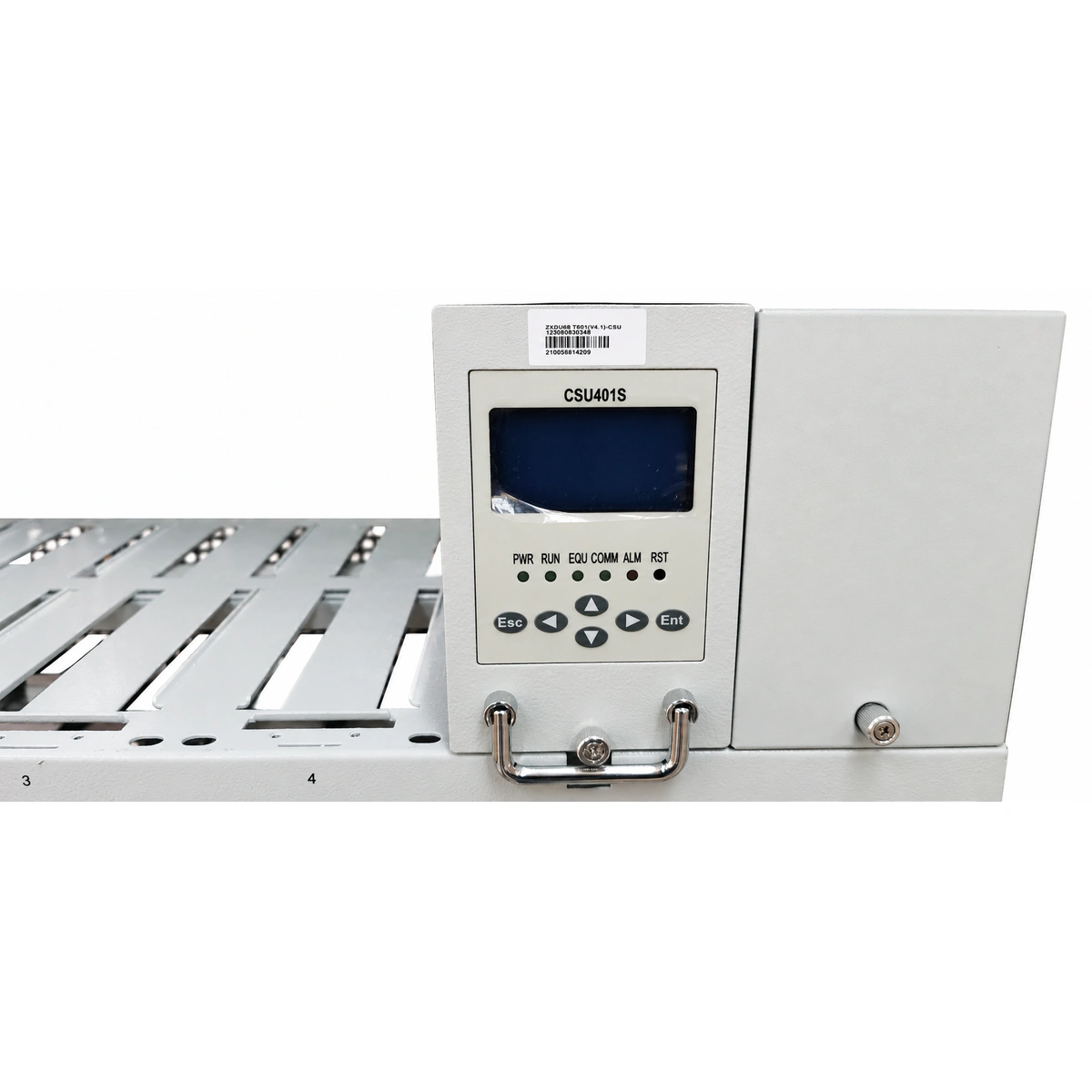

CSU401S Intelligent Supervisory Controller
Form Factor & Protection
2000 × 600 × 600 mm

What this product is

What this product is

Serving as the primary DC powerplant for central offices and data centers, this cabinet houses clusters of 50A rectifiers, converting utility power into secure -48V DC power for critical mission workloads.

What problem it solves

Solves footprint sprawl and management complexity in massive telecom hubs by consolidating high-amperage AC/DC distribution and intelligent battery management into a single enclosure.

Who and where it is for

Engineered for 5G core offices, regional carrier transmission hubs, hyperscale data centers, rail transit dispatch centers, and international gateways.

Core advantages

  • 600A Heavy-Duty DC Busbar: Delivers up to 600A continuous output current with integrated dual-utility manual/automatic transfer switching.
  • Modular Elastic Expansion: Rectifier shelves support hitless N+1 hot-swap additions, scaling smoothly from 50A to 600A as site demand grows.
  • Advanced Dual-Stage LVD Protection: Houses independent LLVD (load shedding) and BLVD (battery protection) contactors to preserve battery integrity.
  • Carrier-Grade Comprehensive Monitoring: Features CSU401S central supervisor supporting remote SNMP telemetry, fault diagnosis, and automated battery tests.

Technical specifications

Key specificationsValue
DC Branch DistributionMulti-way MCBs & Fuses (LLVD + BLVD)
AC Power Distribution380V 3-Phase / 220V 1-Phase Compatible
Supported Rectifier ModulesZTE ZXD2400 / ZXD3000 Series
Rated System Output CapacityFloor-Standing (Up/Downflow) A
Overall System EfficiencyUp to 96.2% (Gold Standard)
Acoustic Noise≤ 55 dBA (at 25°C ambient load)
Ingress Protection RatingIP20 (Indoor Dust & Finger Proof)
Dielectric Withstand Voltage3000VAC Input to Ground (< 5mA)
Form Factor & Protection2000 × 600 × 600 mm
Central Supervisory Monitoring UnitCSU401S Intelligent Supervisory Controller

Applications

01

Telecom 4G/5G macro cellular base stations and distributed remote power sites

02

Enterprise-grade cloud data center mission-critical -48V DC power distribution lineups

03

Utility power grid dispatch centers and high-voltage substation DC switchgear rooms

04

Railway transit signaling, automated train control, and communications equipment rooms
