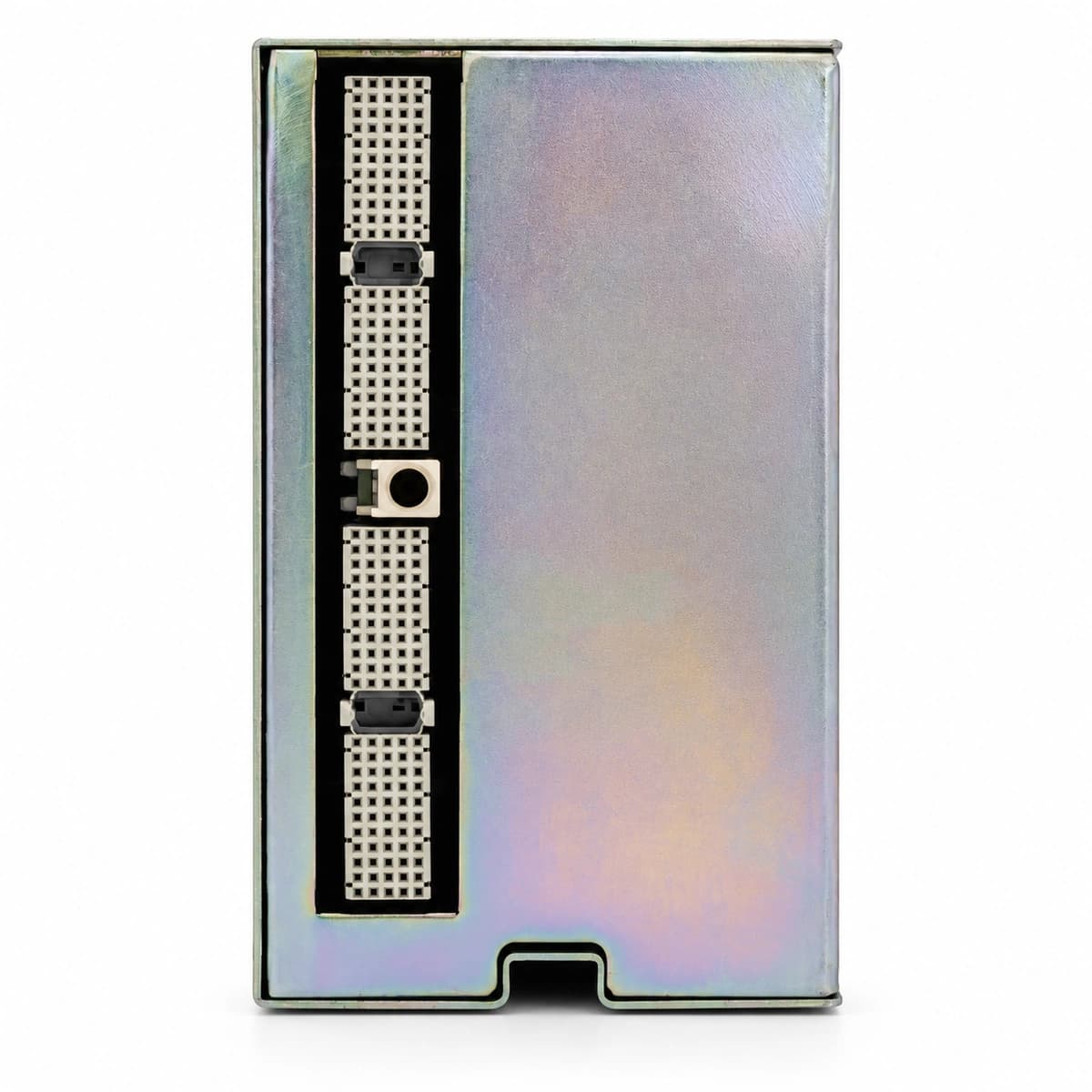

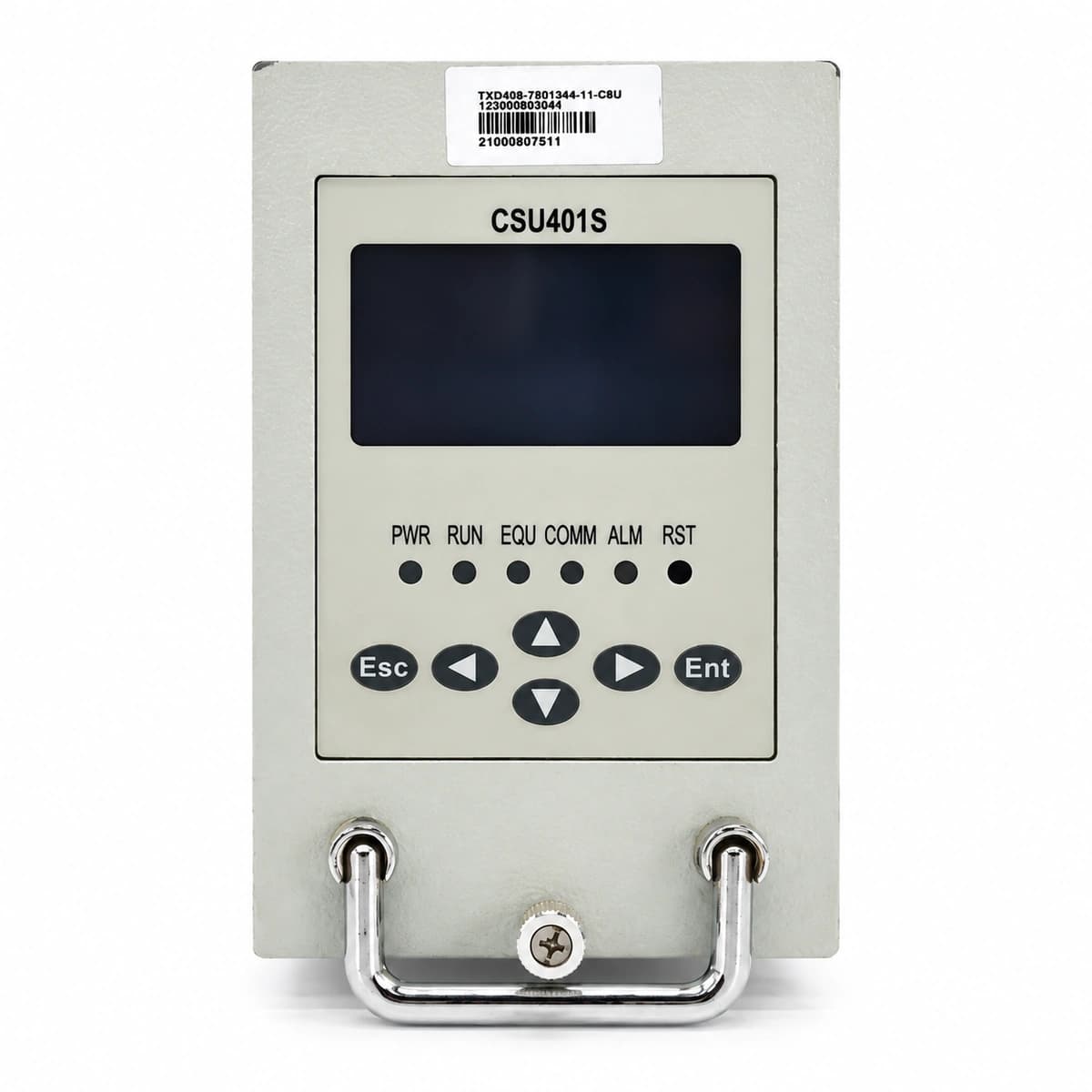

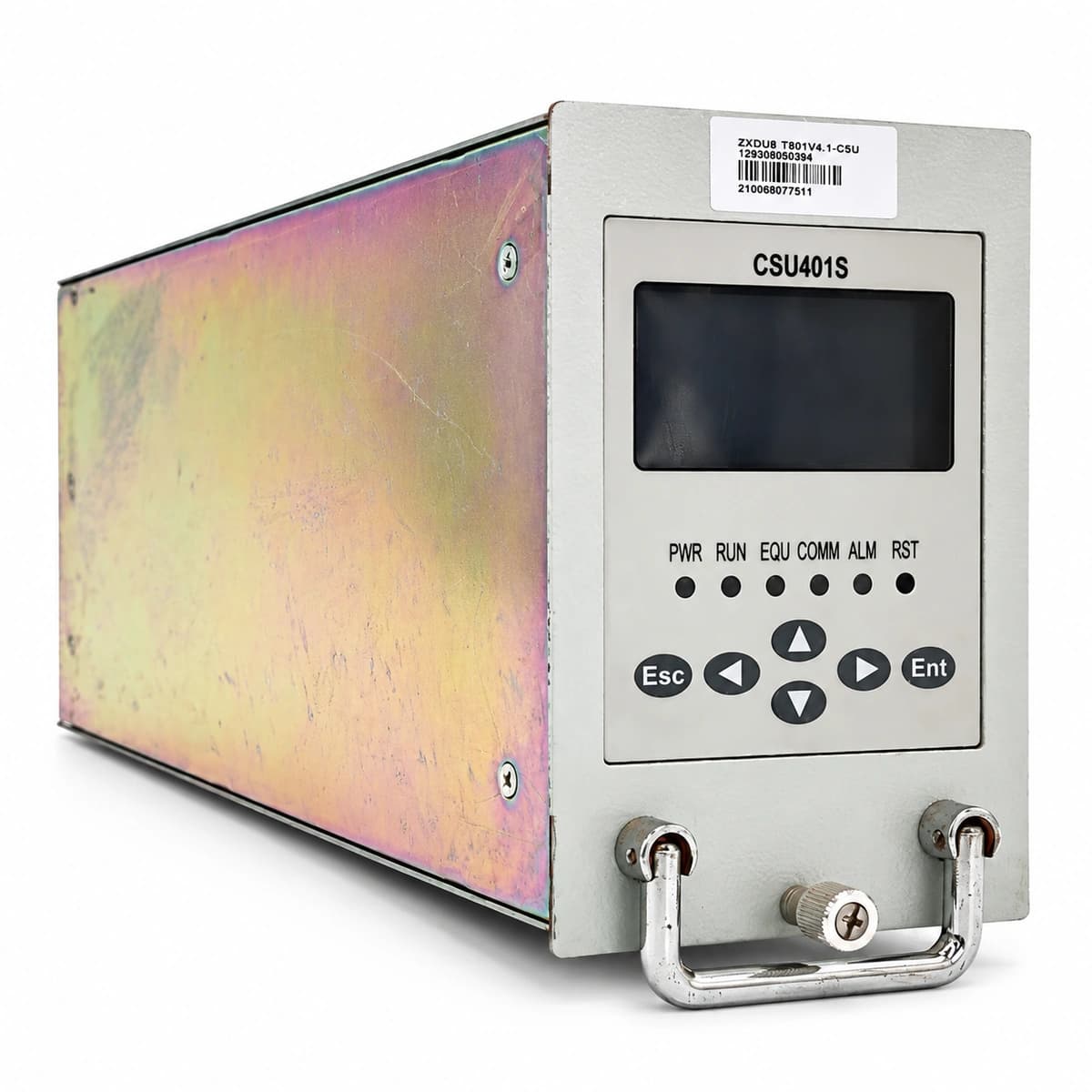

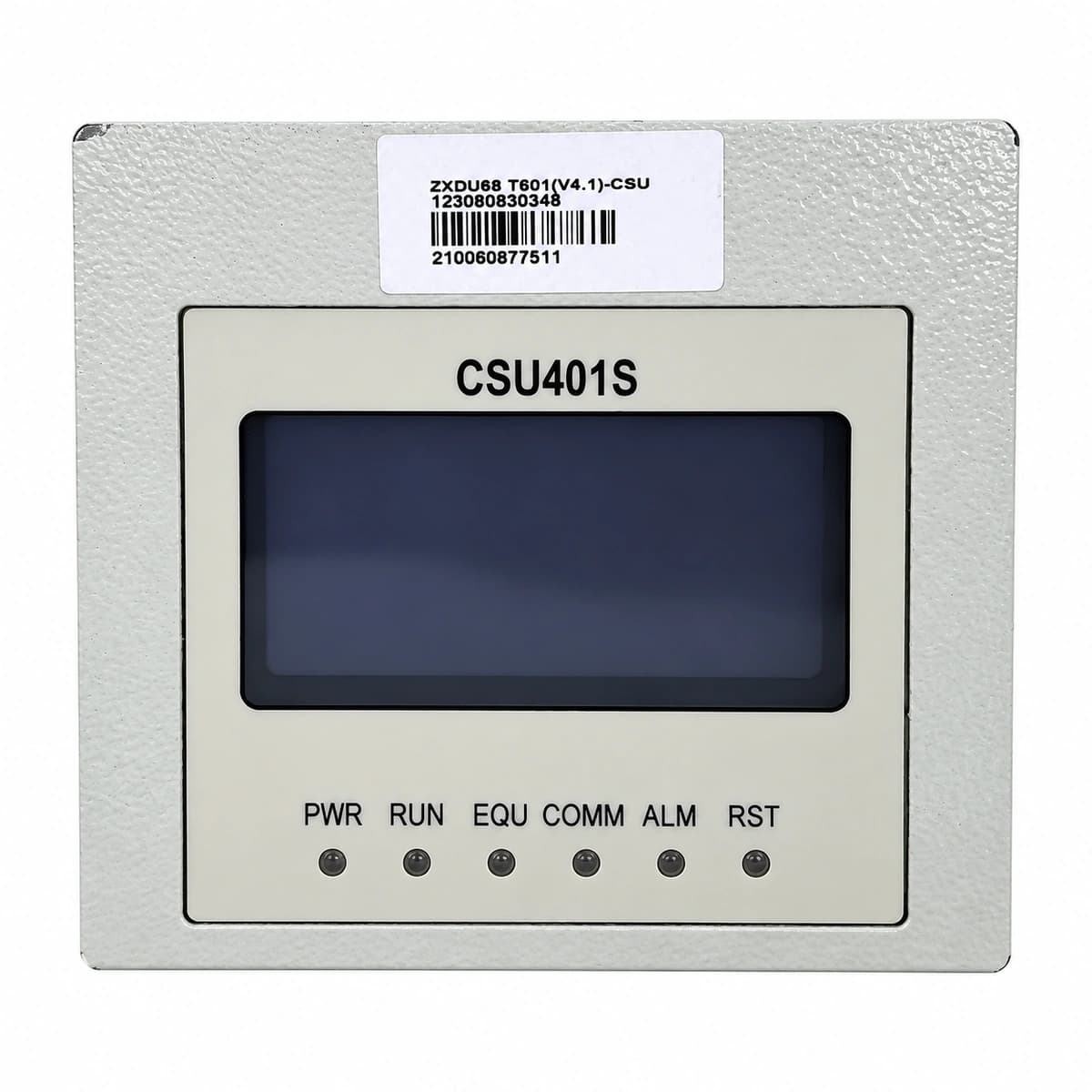

The ZTE CSU401S is a carrier-grade centralized supervisory controller designed for ZXDU series DC power systems, managing AC/DC distribution, rectifiers, and intelligent battery operations.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
The CSU401S is the central telemetry and control engine for ZTE's medium-to-large telecom DC power systems. Built on a real-time embedded architecture with optically isolated industrial buses and high-precision analog-to-digital converters, it manages clusters of rectifiers, monitors AC/DC power distribution, and reports critical site telemetry upstream to the carrier Network Management System (NMS) via standard IP/SNMP protocols.
Eliminates operational vulnerabilities including uncontrolled battery sulfation due to lack of thermal compensation, uncoordinated rectifier cycling, and costly unguided field visits caused by inadequate remote alarm diagnostics.
5G/4G macro base station cabinets, telecom central offices running ZXDU power racks, metro convergence nodes, and industrial -48V DC infrastructure.
| Key specifications | Value |
|---|---|
| Operating Temperature Range | -40°C ~ +75°C |
| System Operating Voltage | 48VDC (-40VDC ~ -60VDC) |
| Human-Machine Interface | LCD Display + Navigation Touch Keys |
| Communication Interfaces | RS232 / RS485 / 10M Ethernet Ports |
| Supported Management Protocols | SNMP / Standard Environment Monitoring Protocols |
| Battery Protection Algorithms | Charge/Discharge Balancing / Temp Compensation / Auto Boost-Float Charge |
| Non-Volatile Log Capacity | 10,000+ Cyclic Event Records |
| Unit Power Consumption | < 8W (Ultra-Low Standby Design) |
| Industrial EMC Level | EN 55032 Class A / IEC 61000-4 Level 4 |
| Relative Humidity Tolerance | 5% to 95% RH (Non-Condensing) |
ZTE
The ZTE CSU500B is the master supervisory controller module driving ZTE ZXDU embedded and cabinet DC power systems, featuring an intuitive graphic LCD display, automated battery float/boost management, and multi-protocol OSS telemetry.
Engineered around an industrial high-speed processing core, this controller delivers sub-watt power efficiency, passive convective thermal resilience, dual isolated bus topology, and carrier-class MTBF, enabling fully autonomous and lights-out operation for mission-critical DC power infrastructure.

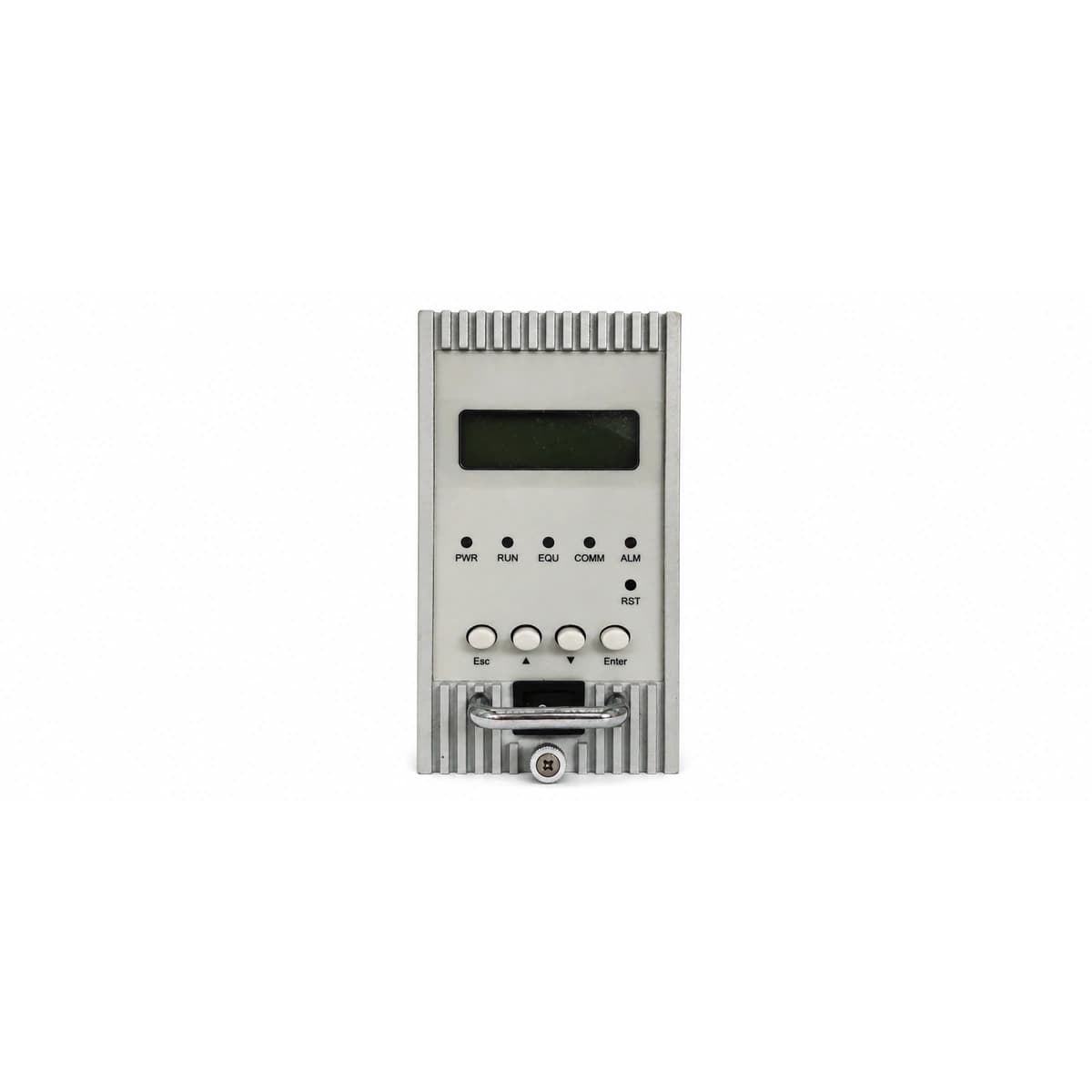

ZTE ZXDU58 B121 supervisory controller featuring an intuitive LCD interface, multi-bus telemetry, and smart battery health management.
