ZTE CSU401S Centralized Supervisory Unit (With Local LCD Display)
Carrier-grade supervisory controller for ZXDU DC power plants, featuring CAN-bus rectifier orchestration, dual LVD control, and SNMP northbound telemetry.

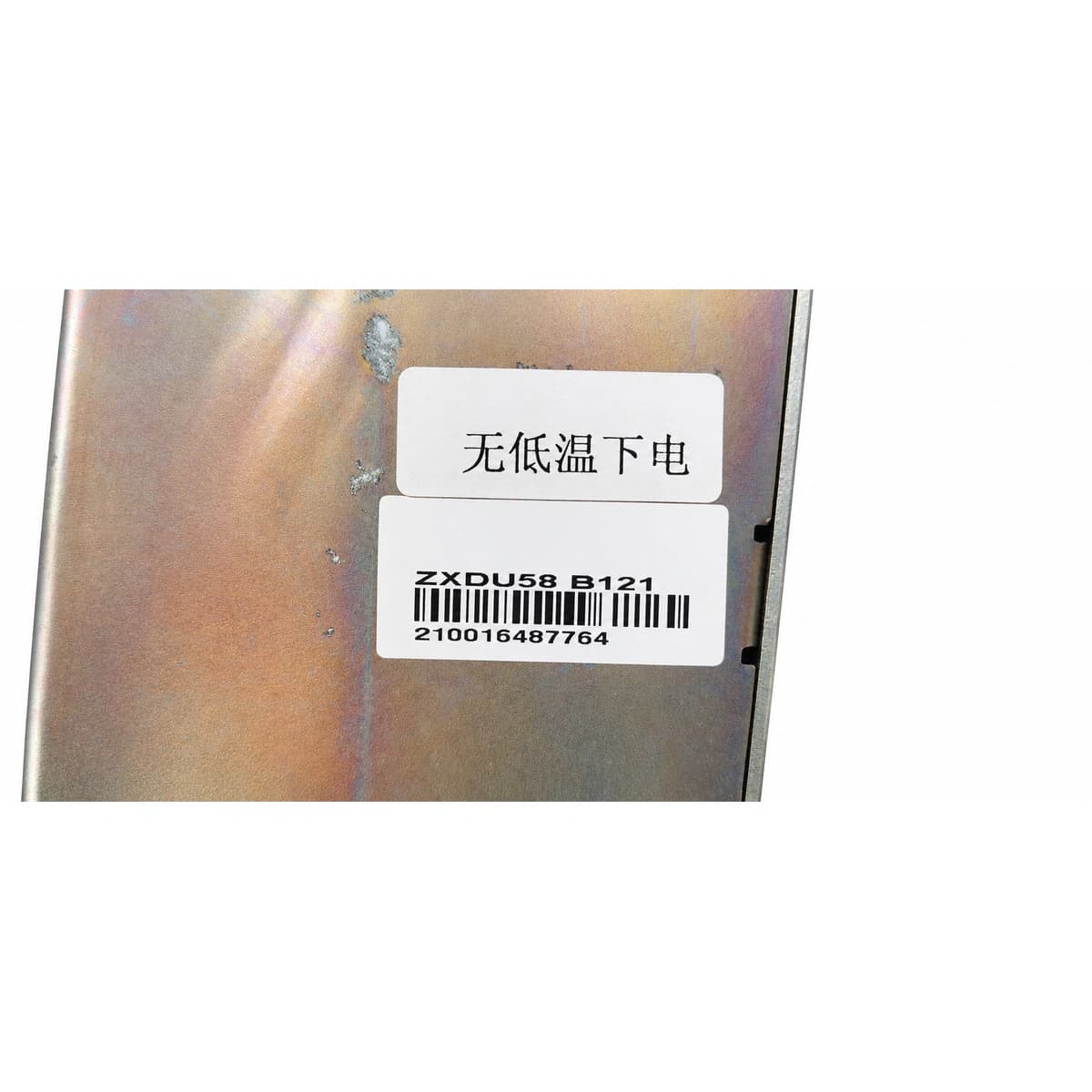

ZTEModel: ZXDU58 B121

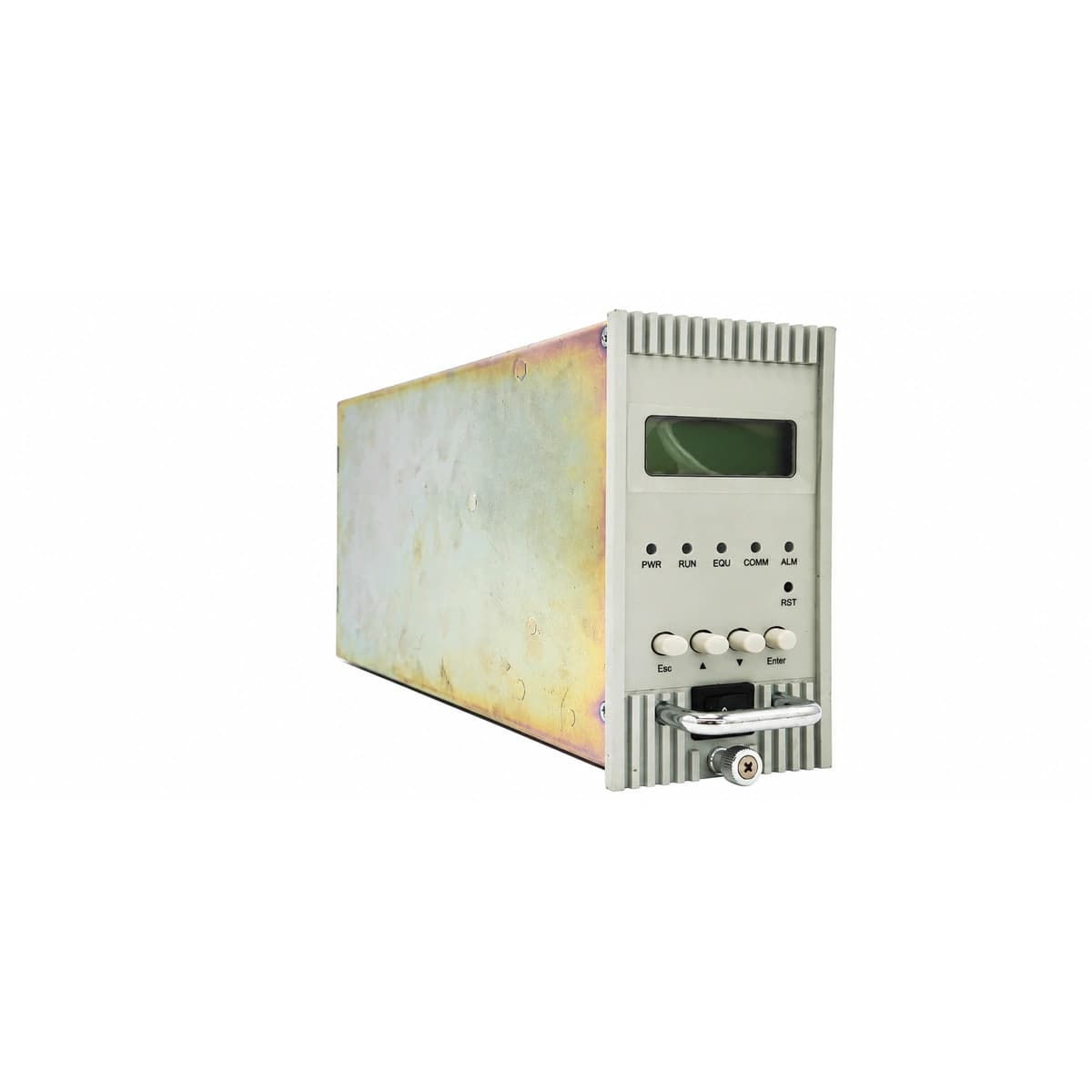

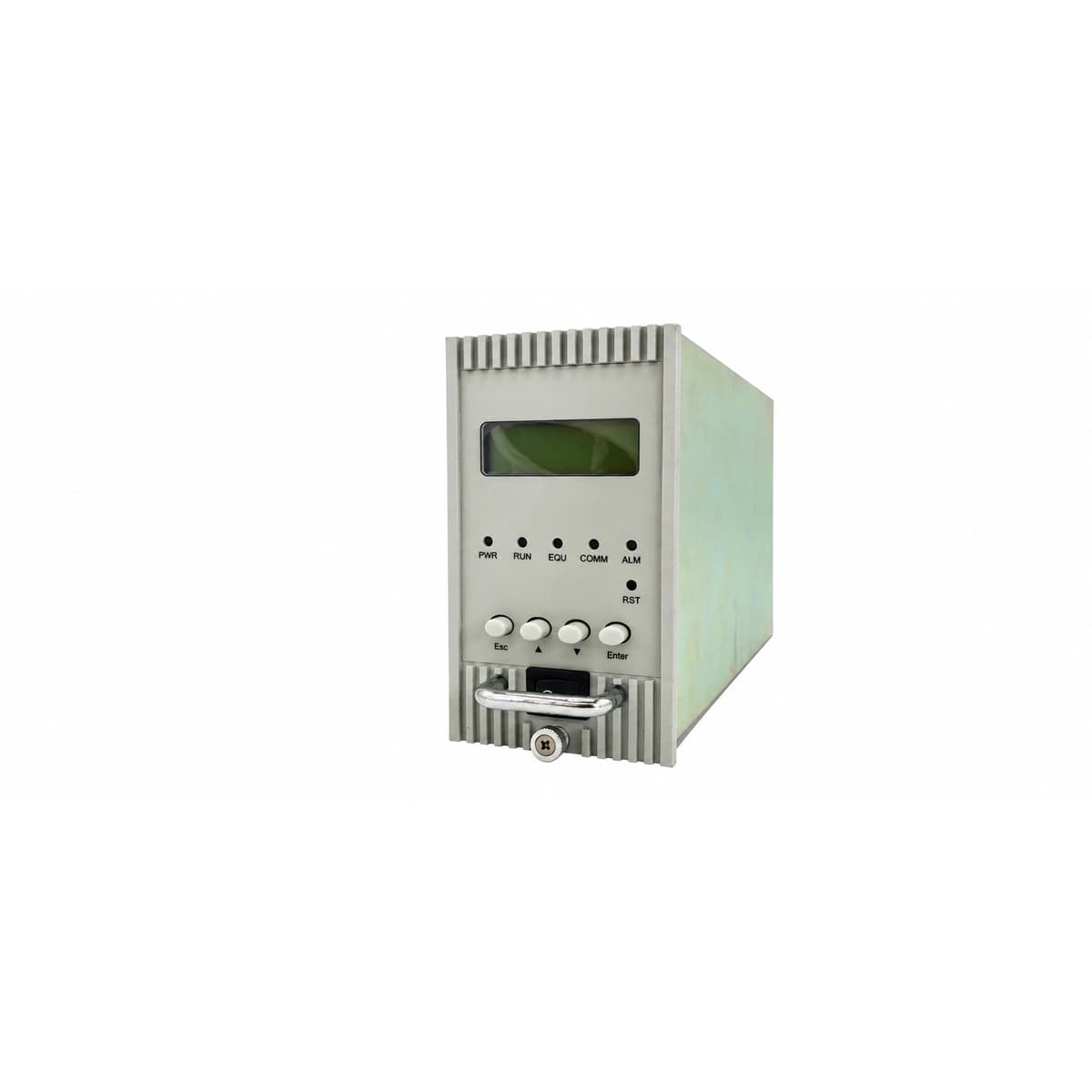

ZTE ZXDU58 B121 Telecom Power Central Supervisory Unit (LCD Touchscreen Alarm Relay)
The ZTE ZXDU58 B121 Supervisory Unit acts as the intelligent control core for ZTE ZXDU58 DC power systems, orchestrating rectifier clusters, battery charge cycling, and environmental telemetry.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- DC Operating Voltage Range
- Nominal -48V DC (-36V to -72V DC)
- Display Interface
- High-Resolution LCD + Navigation Keypad
- Communication Ports
- RS485 / RS232 / CAN / Dry Contact Relays
- Battery Protection Control
- Dual Low-Voltage Disconnect (LLVD / BLVD)
- Operating Temperature Range
- -25°C ~ +55°C
- Chassis Form Factor
- 1600 × 600 × 600 mm
What this product is
What this product is
Functioning as the system's central nervous system, this unit monitors AC mains, DC bus, battery string parameters, and environmental sensors, transmitting telemetry upstream to central OSS/NMS platforms.
What problem it solves
Solves lack of coordination across parallel rectifiers, prevents battery degradation from improper charging regimes, and eliminates delayed alarm notifications during power failures.
Who and where it is for
Engineered for ZTE ZXDU58-series 50A to 300A telecom DC power plants, base station power monitoring, and shelter upgrades.
Core advantages
- Intuitive Multi-Language LCD Screen: Clear bilingual graphical display allows technicians to audit real-time telemetry and modify setpoints with ease.
- Advanced Battery Health Management: Temperature-compensated charging, automated equalize cycling, and dual low-voltage disconnects (LLVD/BLVD) maximize battery life.
- Comprehensive Northbound Interfaces: Provides RS232, RS485, Ethernet, and relay dry contacts supporting standard telecom SNMP network integration.
- Non-Volatile Historical Event Logging: High-capacity onboard memory records detailed timestamped alarm logs that persist through full power outages.
Technical specifications
| Key specifications | Value |
|---|---|
| DC Operating Voltage Range | Nominal -48V DC (-36V to -72V DC) |
| Display Interface | High-Resolution LCD + Navigation Keypad |
| Communication Ports | RS485 / RS232 / CAN / Dry Contact Relays |
| Battery Protection Control | Dual Low-Voltage Disconnect (LLVD / BLVD) |
| Operating Temperature Range | -25°C ~ +55°C |
| Chassis Form Factor | 1600 × 600 × 600 mm |
| Non-Volatile Log Capacity | 10,000+ Cyclic Event Records |
| Unit Power Consumption | < 8W (Ultra-Low Standby Design) |
| Industrial EMC Level | EN 55032 Class A / IEC 61000-4 Level 4 |
| Relative Humidity Tolerance | 5% to 95% RH (Non-Condensing) |
Applications
01
Data center intelligent power distribution header cabinets and busway telemetry systems
02
Master supervisory brain for telecom power plants and autonomous parallel rectifier fleets
03
Substation battery bank string telemetry, cell impedance monitoring, and predictive alarms
04
Integrated power and environment automation for remote unattended telecom hub stations
