ZTE CSU401S Centralized Supervisory Unit (With Local LCD Display)
Carrier-grade supervisory controller for ZXDU DC power plants, featuring CAN-bus rectifier orchestration, dual LVD control, and SNMP northbound telemetry.

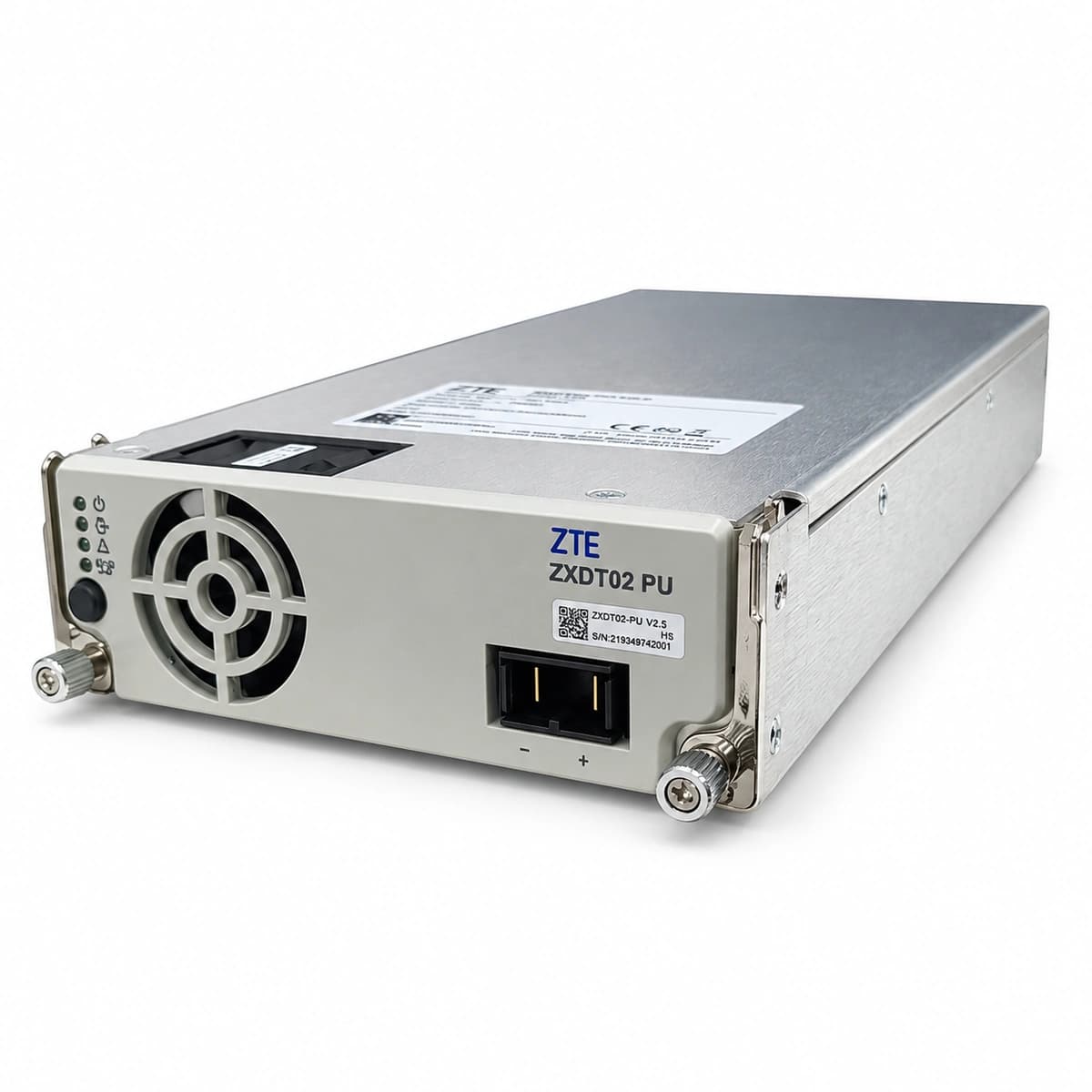

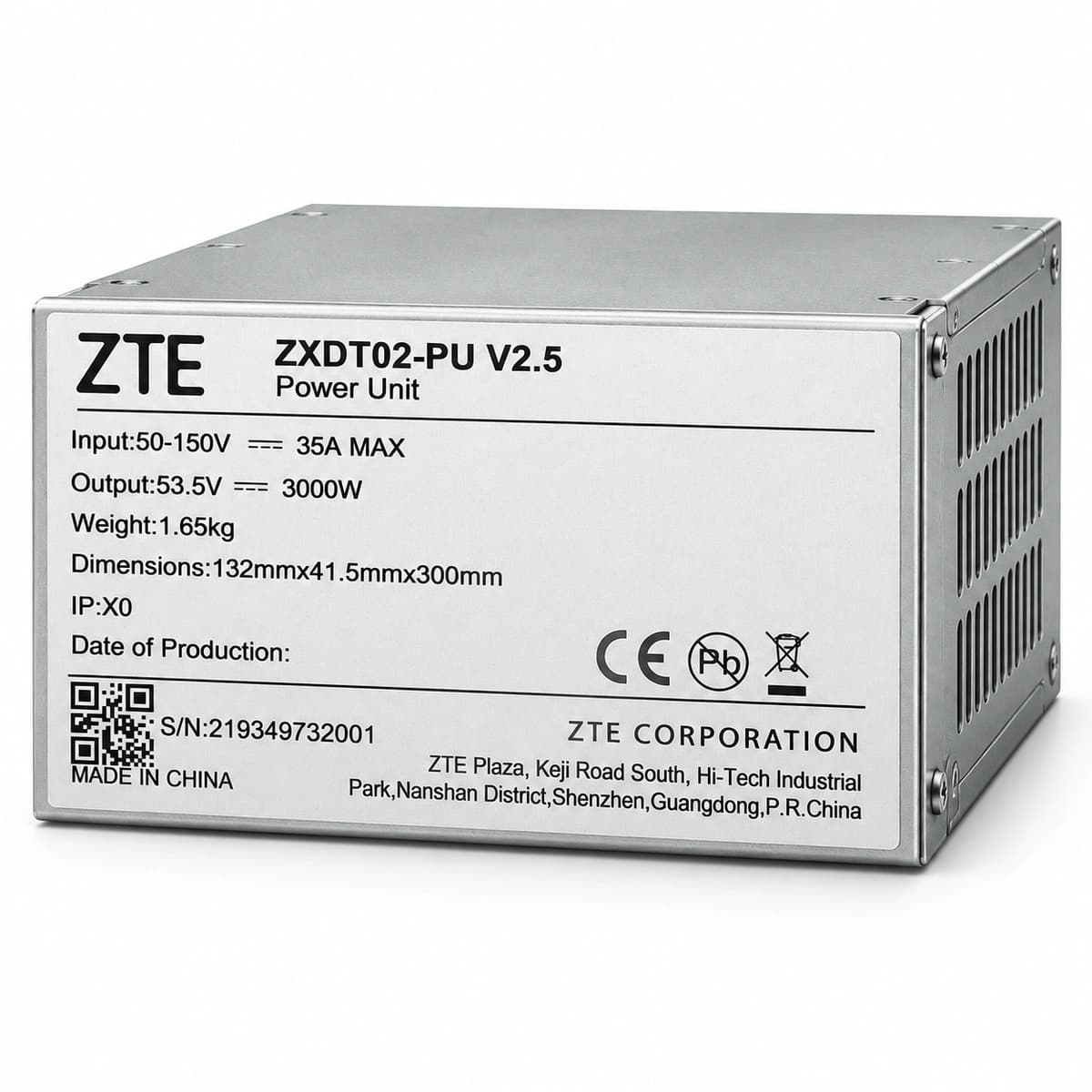

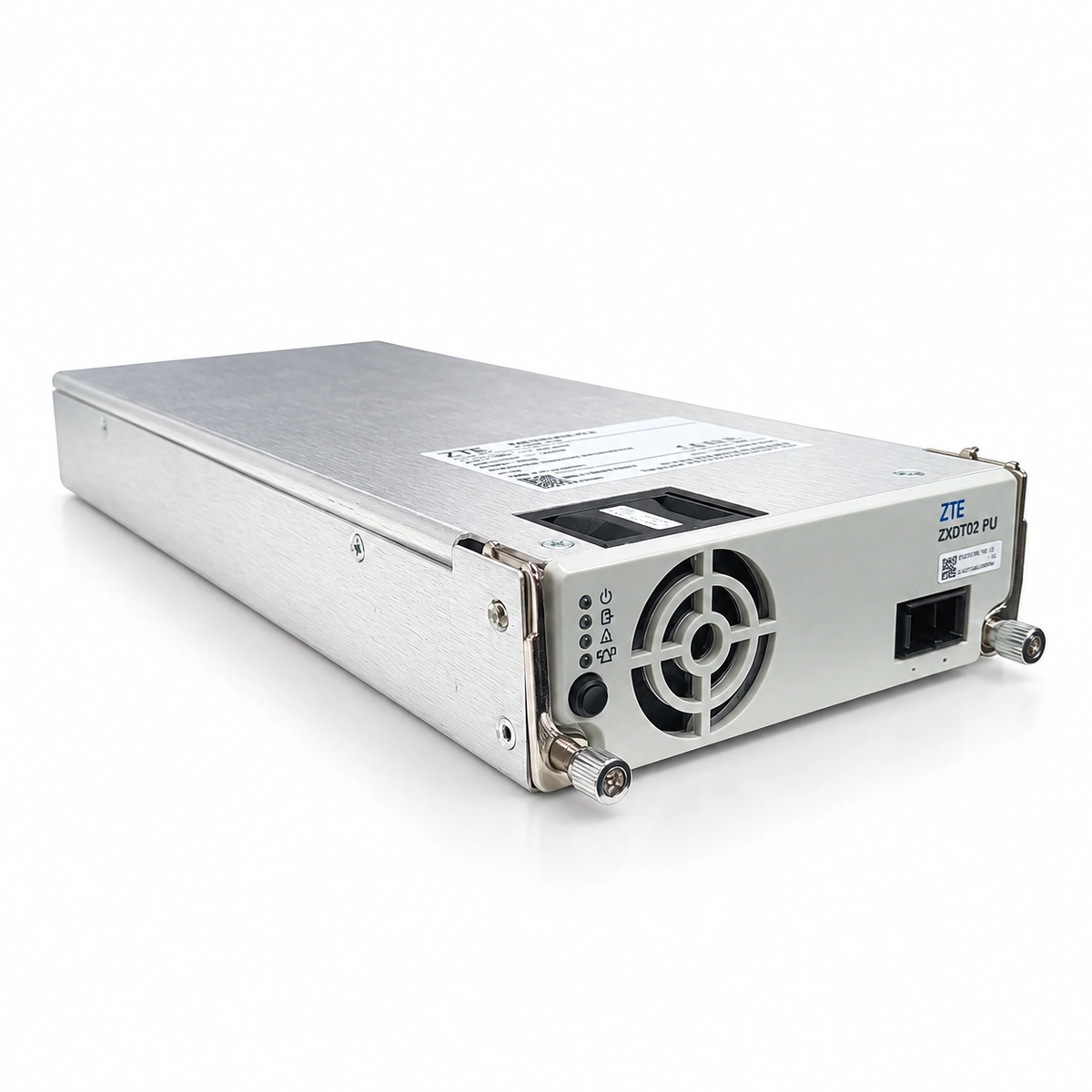

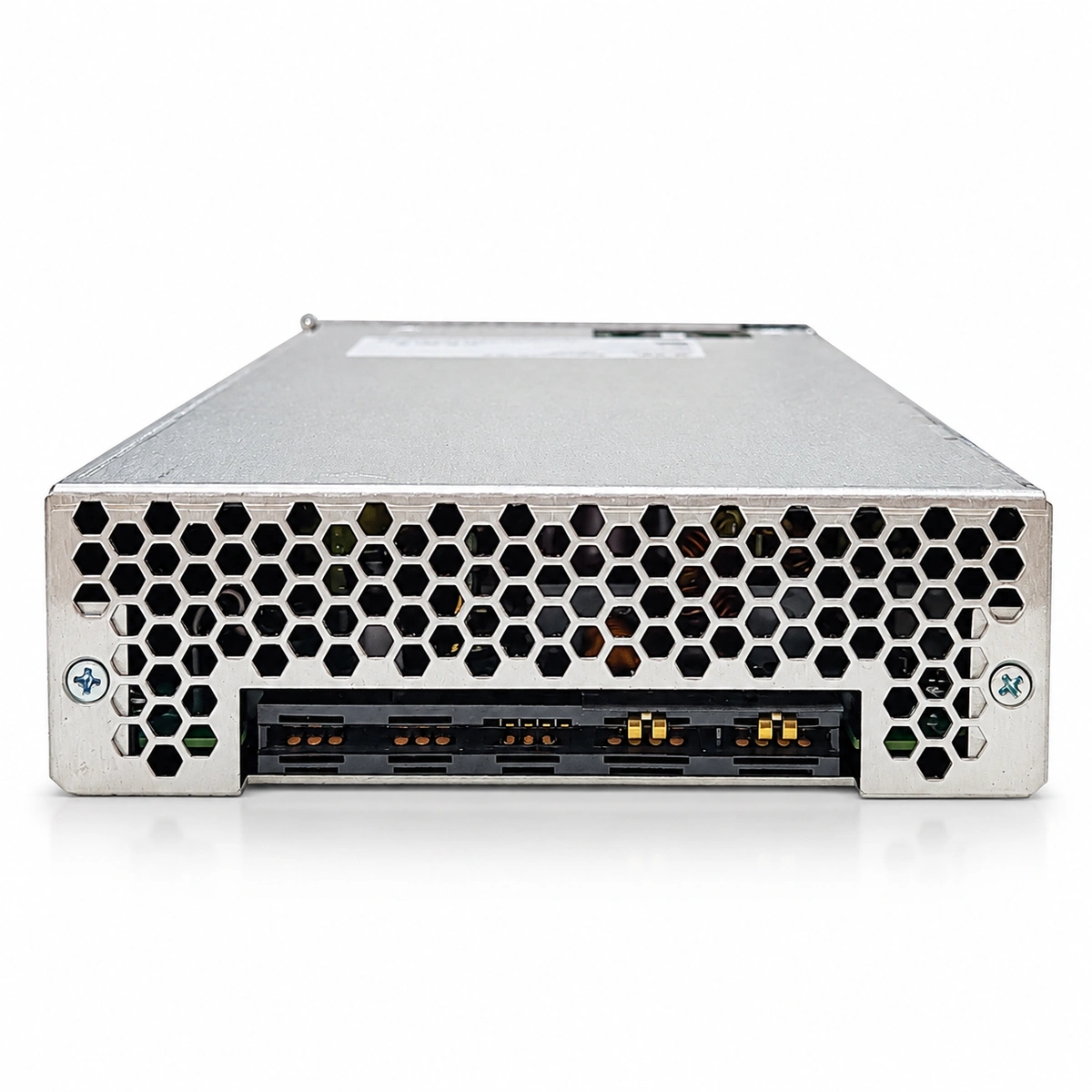

ZTEModel: ZXDT02-PU V2.5
ZTE ZXDT02-PU V2.5 Site Telecom Power Central Supervisory & Processing Unit (RS485/CAN/Ethernet)
The ZTE ZXDT02-PU V2.5 is a carrier-grade telecom site power central supervisory and processing unit designed to orchestrate rectifier clusters, execute intelligent battery energy management, and provide telemetry across industrial DC plant architectures.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- Rated Output Voltage
- -48VDC (-42V ~ -58V)
- Maximum Efficiency
- ≥ 96.0%
- Operating Temperature Range
- -40°C ~ +75°C
- Cooling System
- Forced Air Cooling with Intelligent Speed Fan
- Protection Features
- Over-voltage, Short-circuit, Over-temperature, Surge
- Hot-Swappable Support
- Yes (Live Plug-and-Play Support)
What this product is
What this product is
The ZXDT02-PU V2.5 is a modular supervisory motherboard incorporating a dedicated 32-bit industrial MCU/DSP with multi-channel galvanic isolation. It integrates high-precision signal-conditioning circuits for analog telemetry (DC bus voltage, shunt current, load branch current, and battery string thermal tracking), isolated CAN bus interfaces for high-speed rectifier autonomous load-sharing, isolated RS485 ports for peripheral sensors, Fast Ethernet transceivers for TCP/IP, SNMP, and HTTP networking, hardware watchdogs, and an industrial-grade non-volatile flash storage array for persistent system logging.
What problem it solves
Eliminates centralized telemetry blind spots, prevents catastrophic battery degradation from overcharging or deep thermal runaway, resolves electrical transients and noise coupling common in dirty grid environments, and eliminates unnecessary field truck rolls through robust remote root-cause diagnostics and smart low-voltage disconnect (LLVD/BLVD) controls.
Who and where it is for
5G/4G outdoor macro base station enclosures, telecom central offices, edge computing data nodes, hybrid solar-diesel microgrid controllers, and trackside railway signaling DC backup plants.
Core advantages
- Dual isolated CAN and RS485 communication backplanes ensuring collision-free rectifier control and sensor telemetry.
- Comprehensive battery health algorithms supporting temperature compensation, programmable charge limiting, and smart multi-stage disconnect.
- Native industrial SNMP v1/v2c/v3, Web, and NetNumen protocol support for seamless third-party DCIM integration.
- True online hot-swappable architecture with non-disruptive parameter synchronization, yielding an MTTR of under 3 minutes.
Technical specifications
| Key specifications | Value |
|---|---|
| Rated Output Voltage | -48VDC (-42V ~ -58V) |
| Maximum Efficiency | ≥ 96.0% |
| Operating Temperature Range | -40°C ~ +75°C |
| Cooling System | Forced Air Cooling with Intelligent Speed Fan |
| Protection Features | Over-voltage, Short-circuit, Over-temperature, Surge |
| Hot-Swappable Support | Yes (Live Plug-and-Play Support) |
| THD | ≤ 5% (Total Harmonic Distortion) |
| Power Factor & THD | ≥ 0.99 at Rated Load |
| Standard Compliance | CE, UL, RoHS, IEC 60950, EN 300 386 |
Applications
01
Master control and power distribution monitoring within ZTE ZXDU series outdoor and indoor DC cabinets.
02
Automated battery discharge testing and remote fuel-cell/storage balancing in distributed hybrid power nodes.
03
Critical communications power surveillance for industrial automation, utility substations, and smart grids.
04
Railway wayside interlocking and signaling DC backup system monitoring and remote telecontrol.
