1. Core Electrical Specifications and High-Efficiency Topology

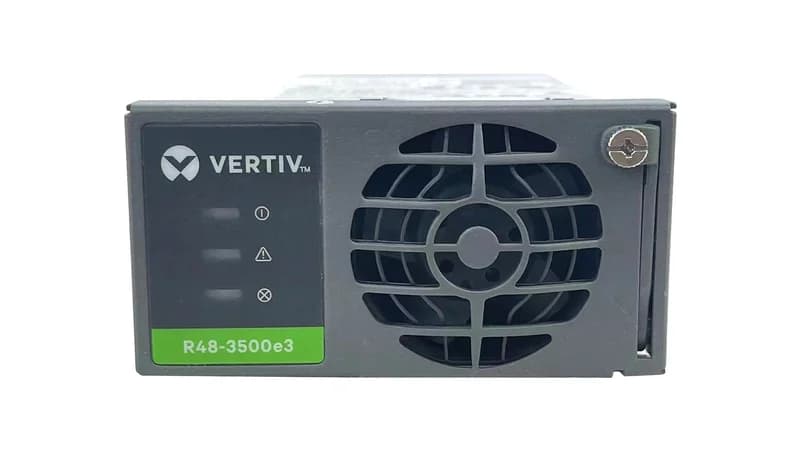

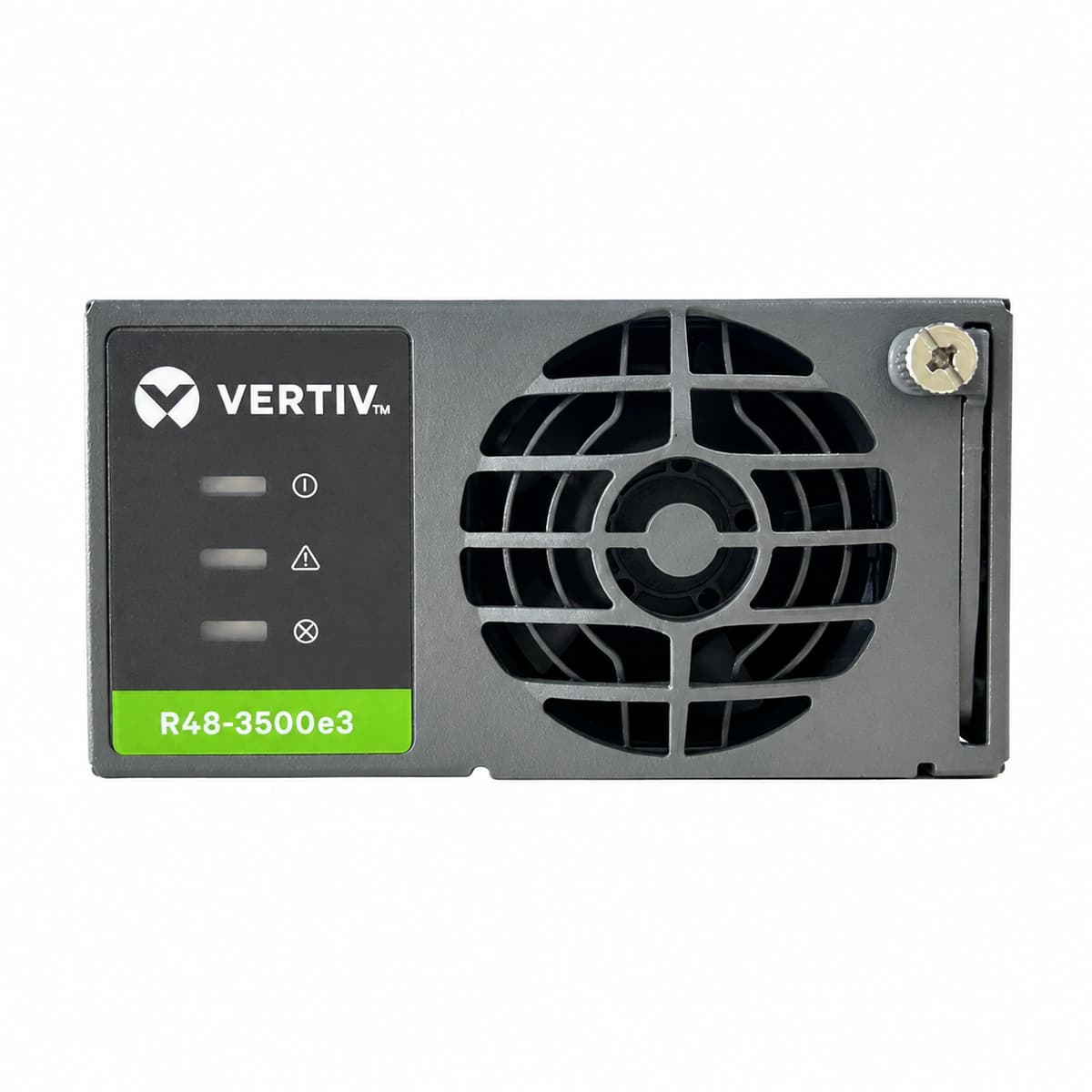

Vertiv (formerly Emerson Network Power) eSure R48-3500e3 is one of the most widely deployed ultra-high-efficiency switch-mode telecom rectifiers across global 5G macro base stations, central offices, and cloud computing data centers. The module delivers a nominal output of -48VDC (system adjustable between -42VDC and -58VDC) with a rated current of 70A, providing up to 3500W of stable DC power. Featuring interleaved bridgeless active PFC combined with resonant soft-switching technology, the R48-3500e3 achieves an impressive peak efficiency of 96.2%, significantly reducing power conversion thermal losses and data center PUE compared to legacy 90%~92% units.
Designed for robust power grid adaptability, the R48-3500e3 operates across a wide single-phase AC input window from 85VAC to 300VAC (45Hz to 65Hz). When grid voltage drops between 85VAC and 176VAC, the internal DSP controller automatically activates a smooth linear derating mechanism to prevent upstream breaker tripping or AC overcurrent shutdown. The unit provides 3000VAC input-to-ground dielectric isolation, three-stage surge protection complying with EN55022 Class B and Telcordia NEBS-3 standards, and an engineering-proven MTBF exceeding 500,000 hours.
Nominal electrical parameters: Single-phase 220VAC input, -48VDC/70A output, 3500W rated capacity
Superior energy efficiency: Peak conversion efficiency reaches 96.2%, PF >= 0.99, THD <= 5%
Ultra-wide grid input: 85VAC to 300VAC operating range with linear derating below 176VAC
Compact 1U hot-swappable form factor: 84.5mm x 41.5mm x 272mm, front-to-back forced air cooling
2. Vertiv R48 Family Evolution: 3000e3 vs. 3500e3 vs. 4300e3 Comparison
The Vertiv R48 series includes multiple variants tailored to distinct power densities and infrastructure tiers. Procurement teams must clearly distinguish between the 3000e3, 3500e3, and 4300e3 models:
The R48-3000e3 delivers 50A/3000W and represents the classic 1U telecom baseline. The R48-3500e3 expands output to 70A/3500W within identical physical frontal dimensions by incorporating advanced silicon carbide (SiC) diodes and ultra-junction MOSFETs, making it the premier choice for retrofitting 5G high-density sites without changing cabinet mechanics. While the R48-4300e3 offers 89.6A/4300W, its greater chassis depth and heavy-duty connector require dedicated high-capacity subracks. When upgrading existing NetSure shelves populated by 50A units, drop-in replacement with R48-3500e3 immediately boosts shelf power capacity by up to 40%.
R48-3000e3: 50A/3000W, 95.8% peak efficiency, standard telecom subrack installation
R48-3500e3: 70A/3500W, 96.2% peak efficiency, premier high-density direct drop-in retrofit module
R48-4300e3: 89.6A/4300W, extreme density requiring specialized high-capacity busbar chassis
Drop-in retrofit advantage: R48-3500e3 provides backward and forward compatibility for immediate 40% capacity gain
3. NetSure Subrack Integration and Central Controller Compatibility
The R48-3500e3 is engineered specifically for Vertiv NetSure telecom power systems, seamlessly fitting standard 19-inch subracks and standalone power cabinets, including the NetSure 531 (embedded 3U/5U), NetSure 731 (medium-capacity 600A/1000A systems), and NetSure 801 (large-scale 1200A to 4000A central office power plants).
On the rear interface, high-reliability blind-mate connectors combine high-current DC power blades, AC pins, and dedicated CAN-bus lines. The module communicates with central monitoring units such as M830B, M830D, and M530S. The controller gathers telemetry on AC input phase voltage, individual module load, heatsink temperature, and fan speeds while orchestrating automated intelligent energy-saving sleep cycles. In parallel operation, active current-sharing imbalance is maintained below +/-3% across the full load spectrum.
Universal NetSure shelf compatibility: Fits NetSure 531, 731, and 801 series power systems
Full-duplex CAN-bus communication: Rapid telemetry and control with M830B, M830D, and M530S controllers
Active parallel current sharing: Autonomous bus sharing and digital control maintain imbalance <= +/-3%
Reliable blind-mate mechanics: Guided insertion rails and spring latch prevent contact arcing
4. Telecom Site Modernization and Seamless Expansion Strategies
Telecom operators expanding 5G coverage frequently encounter power shortages due to legacy 3G/4G site equipment reaching end-of-life. Utilizing Vertiv R48-3500e3 provides two proven engineering paths:
Scenario 1 involves on-line hot-swap replacement: If a running module exhibits a critical alarm (fan lock, over-temperature, or over-voltage), field technicians can release the handle and extract it without shutting down the system. After inspecting the backplane receptacle for dust or oxidation, insert the new R48-3500e3. The controller automatically detects the new module and smoothly ramps up current within seconds. Scenario 2 involves modular expansion: When expanding site capacity for active antenna units (AAUs), insert additional R48-3500e3 modules into vacant slots. Always verify AC distribution breaker ratings, DC busbar cross-sectional ampacity, and battery charging current settings (typically 0.1C to 0.15C) before commissioning.
Non-intrusive online hot-swapping: Zero downtime maintenance with automatic controller handshake
High-density slot expansion: Upgrade 50A slots to 70A to gain 40% capacity without altering infrastructure
Upstream capacity verification: Check AC feeder breakers, DC busbar thermals, and battery charge limits
Automated parameter download: Float voltage, equalize voltage, and alarm thresholds sync automatically
5. Procurement Due Diligence: Identifying Refurbished and Counterfeit Units
Due to tremendous worldwide demand for the R48-3500e3, the secondary market contains substandard refurbished units, repaired boards, and relabeled low-spec modules (such as remarking 50A units as 70A). Procurement specialists must implement rigorous inspection criteria:
First, inspect the nameplate and serial number typography. Authentic Vertiv units feature crisp, laser-etched lettering with verified factory production batches. Counterfeits frequently display uneven fonts or signs of sanding and recoating. Second, verify the tamper-evident factory seals and chassis screws. Genuine units have pristine fasteners without screwdriver scratches or missing seals. Inspect the rear gold fingers and copper power blades; authentic units exhibit pristine, uniform gold/tin plating with no insertion wear or arc pits. Third, check internal capacitors through ventilation slots: genuine units use top-tier industrial capacitors (Nichicon/Rubycon) with flat safety vents, unlike degraded capacitors with domed tops or brittle potting compound.
Laser-etched label verification: Crisp typography matching Vertiv global manufacturing traceability
Chassis and seal integrity: Flawless fasteners and intact factory tamper-evident security stickers
Connector contact condition: Unblemished blind-mate blades without arcing marks or plating wear
Component inspection: Industrial-grade capacitors with flat vents and fresh elastic silicone potting
6. RICEWIND Quality Testing and Worldwide Delivery Guarantee
As an international supplier of mission-critical telecom power infrastructure, RICEWIND maintains extensive inventories of genuine new and pristine Grade A+ telecom rectifiers from Vertiv, Huawei, ZTE, Delta, and Eltek. Every Vertiv eSure R48-3500e3 module undergoes rigorous 100% full-cycle testing in our engineering laboratory:
Our inspection protocol covers: 1) Dynamic full-range AC voltage testing from 85VAC to 300VAC; 2) 4-hour 70A full-load burn-in at elevated ambient temperatures; 3) CAN-bus communication, voltage adjustment, and dynamic current-sharing calibration; 4) Hi-Pot dielectric insulation and leakage safety verification. Products are packaged in anti-static shielding bags with custom high-density polyethylene foam for global air and sea delivery. RICEWIND provides 1 to 3 years warranty and 24/7 technical support worldwide.
100% full-load burn-in testing: 4 hours at 70A full load under dynamic thermal stress
Precision current-share calibration: Complete verification of CAN protocol and bus balancing before dispatch
Telecom-grade protective packaging: Anti-static shielding and custom foam cushioning for secure global transit
